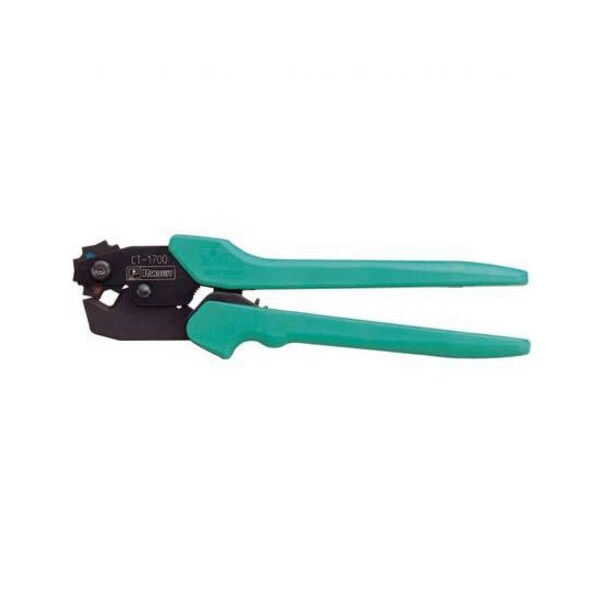

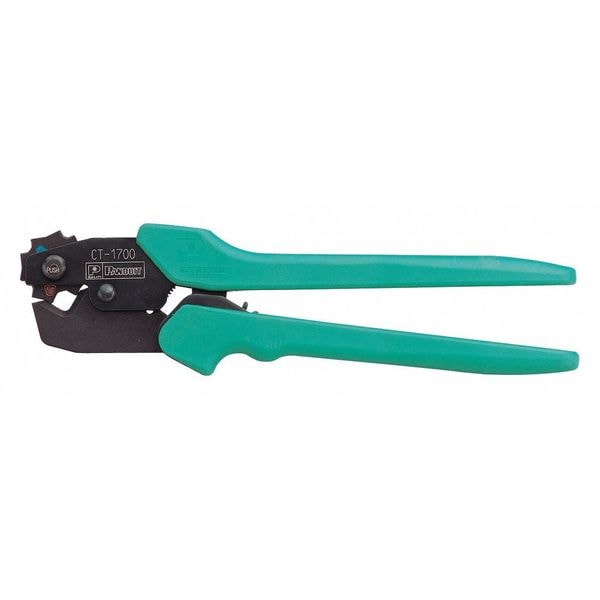

10 7/8 in Crimper 8 to 1 AWG
| Item | Crimper |
|---|---|
| Capacity | 8 to 1 AWG |
| Overall Length | 10-7/8 in |
| Handle Type | Cushion Grip |
| Insulated | No |
| Application | Copper and Aluminum Lugs and Splices, Non-Insulated Tubular Terminals, Copper CTAPF Taps |
| Features | Crimps Panduit #8 - 2 AWG Non-Insulated Tubular Terminals (S Series), #8 - 1 AWG Copper Code Conductor Lugs and Splices, #8 - 2 AWG Copper Flex Conductor Lugs, #6 - 4 AWG Dual Rated Aluminum Lugs and Splices and CTAPF10-16 to CTAPF3-12 Copper Taps. Includes 5-Position, Color Coded Rotating Die; Ergonomic Tool Design, Assures Operator Comfort, Chemical Resistant |
| Adjustable | Automatic |
| Standards | CSA Certified, UL Listed |
| Handle Material | Polypropylene |
| For Use With | Panduit Non-Insulated Tubular Terminals (S series), Copper Code Conductor Lugs and Splices, Copper Flex Conductor Lugs, Dual Rated Aluminum Lugs and Splices and CTAPF10-16 to CTAPF3-12 Copper Taps, Includes 5 - Position, Color Coded Rotating Die |
| Includes | Die |
| Cuts | No |
| Max. Crimping Force | Not Rated |
| Insulated / Uninsulated | Uninsulated |
| Primary Crimping Application | Electrical Wire and Cable |
| Replacement Die Code | None |
| Strips | No |
| Tool Length | 10-5/8 in |
| Tool Weight | 1.25 lb |
| Includes Wire Cutter | No |
| Crimping Capacity - Copper Lug | 1 AWG, 2 AWG, 4 AWG, 6 AWG, 8 AWG |
| Maximum Compatible Wire Size | 8 AWG |
| Compatible Terminal Type | Uninsulated |
| Includes Wire Stripper | No |
| Replacement Die Part Number | None |
| Grip Style | Deluxe Cushion |
| Maximum Crimping Capacity - Aluminum Lug | 4 AWG |
| Adjustability | Automatic |
| Crimping Capacity - Aluminum Lug | 4 AWG, 6 AWG |
| Body Material | Steel |
| Includes Crimping Die | Yes |
| Compatible Connector Type | Dual Rated Aluminum Lugs and Splices And CTAPF10-16 to CTAPF3-12 Copper Taps, No. 6 - 4 American Wire Gauge (AWG), No. 8 - 1 American Wire Gauge (AWG) Copper Code Conductor Lugs And Splices, No. 8 - 2 American Wire Gauge (AWG) Copper Flex Conductor Lugs, Non-Insulated Tubular Terminals (S Series), Panduit No. 8 - 2 American Wire Gauge (AWG) |
| Minimum Compatible Wire Size | 1 AWG |
| Crimper Style | Crimper Tool |
| Maximum Crimping Capacity - Copper Lug | 1 AWG |
| Minimum Crimping Capacity - Aluminum Lug | 6 AWG |
| Minimum Crimping Capacity - Copper Lug | 8 AWG |
| Maximum Crimping Force | Not Rated |
| Package Quantity | 1 |
