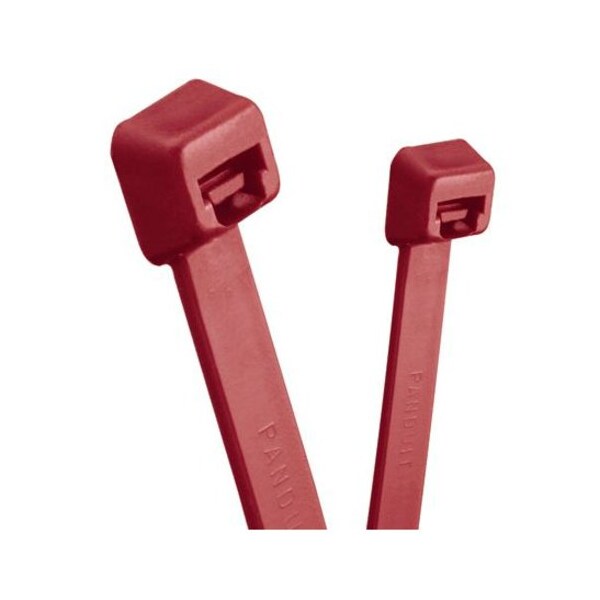

11-39/64" L, 0.19" W, Maroon Cable Tie, Package quantity: 1000
| Item | Cable Tie |
|---|---|
| Length | 11-39/64" |
| Width | 0.19 in |
| Max. Bundle Dia. | 3 in |
| Color | Maroon |
| Material | HALAR Fluoropolymer |
| Tensile Strength | 50 lb |
| Indoor/Outdoor | Plenum |
| Locking Style | Locking |
| Cable Tie Duty | Standard |
| Thickness | 3/64 in |
| Design | One-Piece Locking Wedge |
| Temp. Range | -60 to 125 deg C |
| Resists | Heat, UV |
| Standards | CSA Certified, UL Recognized, UL 62275 Compliant |
| UL Type | 21, 2S |
| For Use With | GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2 |
| Overall Length | 11-1/2 in |
| Maximum Bundle Diameter (In.) | 3 |
| Overall Length (In.) | 11.6 |
| Body Thickness (mm) | 1.4 |
| Standards Met | CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2S, 21S), RoHS Compliant |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Loop Tensile Strength (N) | 222 |
| Maximum Operating Temperature (°F) | 257 |
| Minimum Bundle Diameter (In.) | 0.39 |
| Product Type | Cable Tie |
| Minimum Loop Tensile Strength (lb) | 50 |
| Minimum Installation Temperature (°F) | -4 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Bundle Diameter (mm) | 10 |
| Resistance Properties | Heat and UV Resistant |
| Environment | Plenum |
| Body Width (mm) | 4.8 |
| Body Width (In.) | 0.19 |
| Body Thickness (In.) | 0.055 |
| Overall Length (mm) | 295 |
| Maximum Bundle Diameter (mm) | 76 |
| Cable Manager Type | Cable Tie |
| Product Material | Fluoropolymer |
| Product Color | Maroon |
| Product Name | Pan-Ty Cable Tie |
| Product Line | Pan-Ty |
| Minimum Loop Tensile Strength | 50 lb |
| Max Operating Temperature | 125 degrees celsius |
| Min Operating Temperature | -60 degrees celsius |
| Product Class | Management, Protection, Wire Routing |
| Package Quantity | 1000 |
