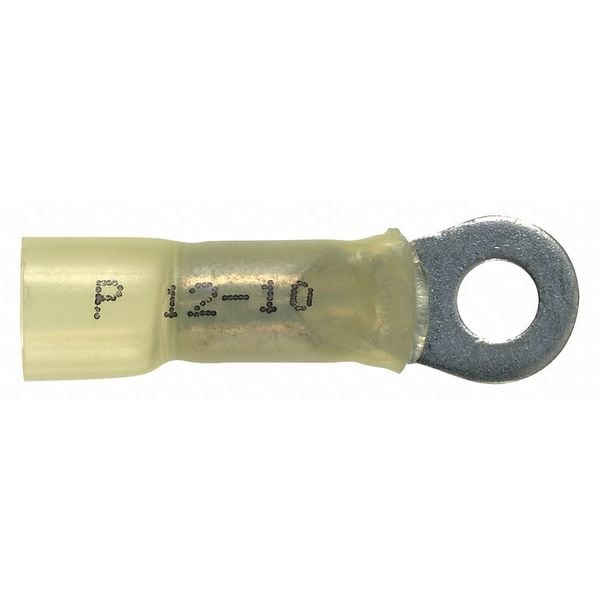

Terminal de anillo termocontraíble de calibre 12-10, para tornillo #10, paquete de 20 unidades.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Heat Shrink |
| Stud Size | #10 |
| Insulation Color | Yellow |
| Connection Type | Crimp |
| Tongue Width - Wire Connector | 0.37 in |
| Green Environmental Attribute | Does Not Contain PVC |
| Standards | CSA C22.2 No. 65, UL 486A, UL 486B |
| Max. Voltage | 600 V |
| Seam | Brazed |
| Connection Material | Copper |
| Max. Temp. | 230 deg F |
| Item | Ring Terminal |
| Terminal Connection | Crimp |
| Overall Length | 1.2 in |
| Terminal Type | Ring Tongue |
| Features | Flame Retardant |
| For Use With | CT-310 |
| Width | 0.4 in |
| Length | 1.2 in |
| Maximum Operating Temperature | 257 deg F |
| Minimum Operating Temperature | 230 deg F |
| Tongue Width | 0.37 in |
| Strip Length | 3/8 in |
| Barrel Length | 1/4 in |
| Barrel Style | Brazed |
| Contact Material | Copper |
| Termination Style | Crimp |
| Seam Style | Brazed |
| Contact Finish | Tin |
| Maximum Wire Size | 10 AWG |
| Terminal Shape | Ring Terminal |
| UL 94 Flammability Rating | HB, V-2 |
| Maximum Voltage | 600 V |
| Insulation Material | Polyolefin |
| Minimum Wire Size | 12 AWG |
| Compatible Manufacturer Model Number | CT-310 |
| Special Features | Heat Shrink Installation is Completed with a Standard Heat Gun, Heat Shrink Sleeving Forms a Protective Barrier to Provide Environmentally Sealed Terminations Ideal for High Moisture Applications, Ring Tongue Design Assures a Secure Connection in High Vibration Applications, Shrink Temperature 300 Degrees F (150 Degrees C) |
| Insulation Dia | 0.24 in |
| Environmentally Friendly | Yes |
| Connector Details | 1 x (Ring Terminal) |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Connector Type | Ring Terminal |
| Product Type | Terminal Connector |
| Product Material | Copper |
| Product Color | Yellow |
| Maximum Wire Insulation Diameter (In.) | 0.24 |
| Overall Length (mm) | 30.48 |
| Color Code | Yellow |
| Maximum Copper Conductor Size (AWG) | #10 |
| Wire Strip Length (mm) | 7.9 |
| Maximum Wire Insulation Diameter (mm) | 6.1 |
| Seam Type | Brazed |
| Barrel Length (mm) | 6.35 |
| Packaging Type | Bag |
| Stud Hole Size (mm) | 5 |
| Overall Length (In.) | 1.2 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212 |
| Maximum Operating Temperature (°F) | 257 |
| Stud Hole Size (In.) | #10 |
| Base Material | Copper |
| Minimum Copper Conductor Size (AWG) | #12 |
| Sub Brand | Pan-Term® |
| Maximum Operating Temperature (°C) | 125 |
| Barrel Length (In.) | 1/4 |
| Maximum Wire Size (AWG) | #10 |
| Tongue Width (mm) | 9.4 |
| Finish/Coating | Tin-Plated |
| Maximum Metric Conductor Size (mm²) | 6 |
| Overall Width (In.) | 0.37 |
| Minimum Wire Size (AWG) | #12 |
| Barrel Type | Standard |
| Flammability Rating | UL94-HB |
| Wire Strip Length (In.) | 45,062 |
| Maximum Voltage (V) | 600 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Overall Width (mm) | 9.4 |
| Maximum Operating Temperature (°C) | 125 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Maximum Operating Temperature (°F) | 257 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Package Quantity | 20 |
