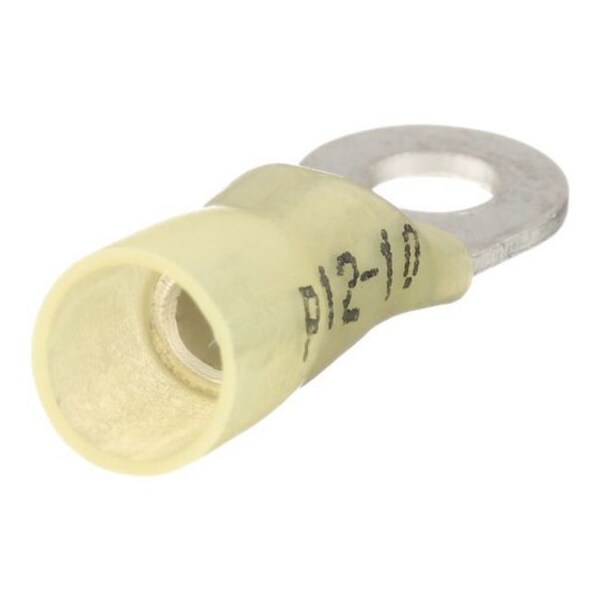

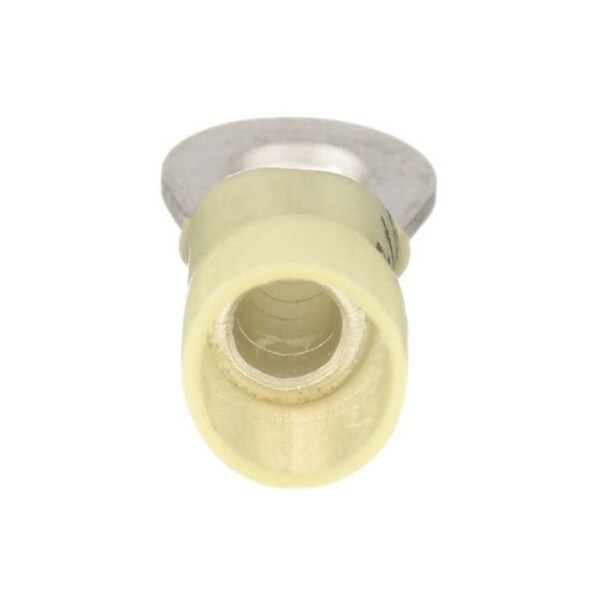

12-10 AWG Heat-Shrink Ring Terminal PK20, Insulation Color: Yellow
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Heat Shrink |
| Stud Size | #8 |
| Insulation Color | Yellow |
| Item | Ring Terminal |
| Standards | cULus Listed 587H E52164, CSA Certified LR31212 |
| Features | Flame Retardant |
| Overall Length | 1.22 in |
| Max. Voltage | 600 V |
| Connection Material | Copper |
| Seam | Standard, Brazed |
| Terminal Type | Ring Tongue |
| Max. Temp. | 257 deg F |
| Tongue Width - Wire Connector | 9.4 mm |
| Width | 0.4 in |
| Length | 1.2 in |
| Finish | Tin-Plated |
| Insulation Dia | 0.24 in |
| Connector Plating | Tin |
| Product Color | Yellow |
| Connector Details | 1 x (Ring Terminal) |
| Product Material | Copper |
| Product Type | Terminal Connector |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Color Coding | Yellow |
| Max Operating Temperature | 125 degrees celsius |
| Barrel Type | Seam |
| Package Quantity | 20 |
