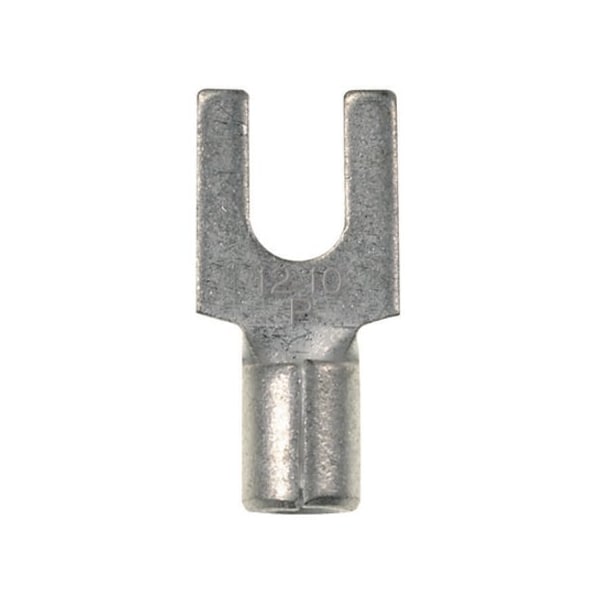

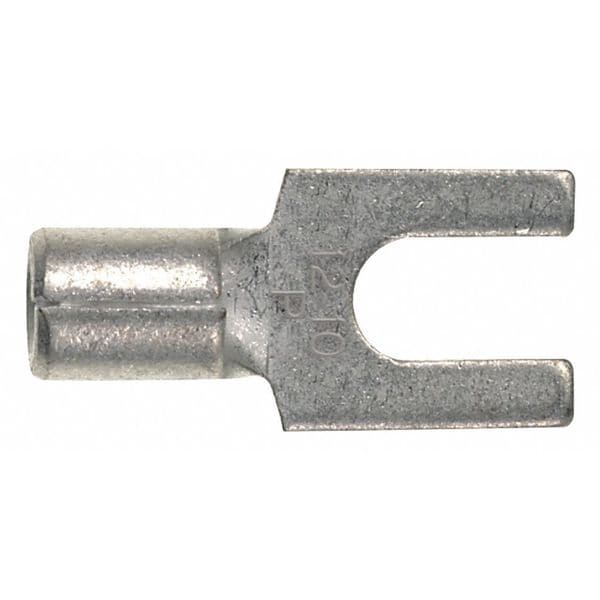

12-10 AWG Non-Insulated Fork Terminal #10 Stud PK50
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #10 |
| Insulation Color | Bare |
| Seam | Brazed |
| Connection Type | Crimp |
| Connection Material | Copper |
| Features | Barrel of Terminal Internally Beveled to Provide, Fork Design Provides for Fast and Easy Installation, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Without The Need to Remove Fastener |
| Max. Voltage | 2,000 V |
| Standards | CSA Certified, UL 587-H, UL Listed |
| Item | Fork Terminal |
| Overall Length | 0.78 in |
| Tongue Width - Wire Connector | 0.37 in |
| Terminal Type | Standard |
| Terminal Connection | Crimp |
| Max. Temp. | 302 deg F |
| Barrel Inside Dia. | 0.13 in |
| Material | Copper |
| Length | 0.8 in |
| For Use With | CT-100, CT-200, CT-1570, CT-1701, CT-2300/ST (CD-550), CT-2500/L (CT-2570CH), & UP14ZLW (CD-570) |
| Width | 0.4 in |
| Maximum Voltage | 2,000 V |
| Tongue Width | 0.37 in |
| Compatible Manufacturer Model Number | CT-100A, CT-1570, CT-160, CT-1701 (P10), CT-200, CT-2500 (CT-2570CH), CT-260, CT-600-A (CT-570CH) |
| Special Features | Barrel of Terminal Internally Beveled to Provide, Fork Design Provides for Fast and Easy Installation, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength |
| Maximum Operating Temperature | 302 deg F |
| Minimum Wire Size | 12 AWG |
| Tongue Thickness | 0.04 in |
| Strip Length | 1/4 in |
| Insulation Material | None |
| Insulation Coverage | None |
| Tongue Length | 0.51 - 1.00 inches |
| Termination Style | Crimp |
| Compatible with Product Type | Crimper, Crimp Tool, Wire Stripper |
| Compatible with Series | CT |
| Barrel Style | Bevelled |
| Barrel Length | 0.28 in |
| Contact Finish | Tin |
| Contact Material | Copper |
| Seam Style | Brazed |
| Terminal Shape | Fork |
| Maximum Wire Size | 10 AWG |
| Environmentally Friendly | Yes |
| Product Type | Terminal Connector |
| Product Material | Copper |
| Connector Details | 1 x (Fork Terminal) |
| Connector Plating | Tin |
| Connector Type | Fork Terminal |
| Product Name | Terminal Connector |
| Stud Hole Size (In.) | #10 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Barrel Length (In.) | 0.28 |
| Maximum Operating Temperature (°C) | 150 |
| Overall Width (In.) | 0.37 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Wire Strip Length (mm) | 7.1 |
| Fork Type | Standard |
| Packaging Type | Bottle |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (mm) | 5.6 |
| Tongue Length (mm) | 12.8 |
| Maximum Wire Size (AWG) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Tongue Width (In.) | 0.37 |
| Maximum Voltage (V) | 2,000 |
| Inside Diameter (mm) | 3.3 |
| Tongue Length (In.) | 0.51 |
| Outer Diameter (In.) | 0.22 |
| Overall Width (mm) | 9.4 |
| Tongue Thickness (In.) | 0.04 |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Barrel Type | Standard |
| Overall Length (In.) | 0.78 |
| Color Code | Metallic |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Sub Brand | Pan-Term® |
| Minimum Wire Size (AWG) | #12 |
| Stud Hole Size (mm) | 5 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Base Material | Copper |
| Wire Strip Length (In.) | 11,933 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Inside Diameter (In.) | 0.13 |
| Seam Type | Brazed |
| Barrel Length (mm) | 7 |
| Maximum Voltage (kV) | 2 |
| Finish/Coating | Tin-Plated |
| Tongue Width (mm) | 9.4 |
| Tongue Thickness (mm) | 1 |
| Overall Length (mm) | 19.8 |
| Package Quantity | 50 |
