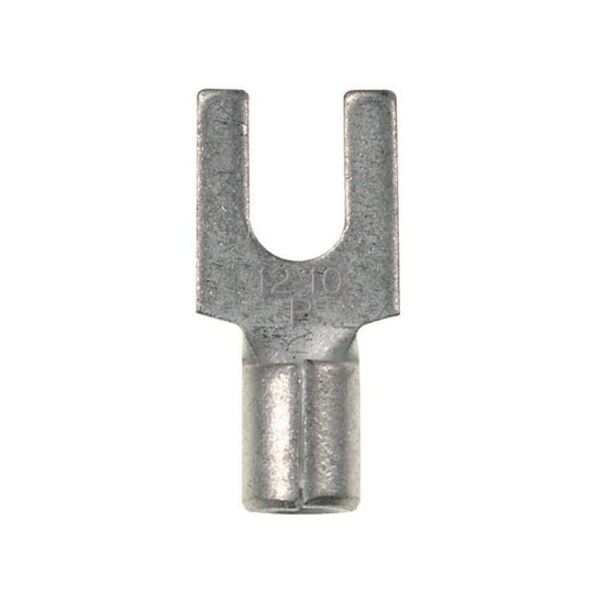

12-10 AWG Non-Insulated Fork Terminal #6 Stud PK50
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #6 |
| Insulation Color | Bare |
| Max. Voltage | 2,000 V |
| Item | Fork Terminal |
| Seam | Brazed |
| Connection Material | Tin-Plated Copper |
| Max. Temp. | 150 deg C |
| Features | Brazed Seam |
| Terminal Type | Standard |
| Standards | CSA Certified C22.2 No. 65; UL486A-486B |
| Overall Length | 3/4 in |
| Width | 0.3 in |
| Length | 0.8 in |
| Finish | Tin-Plated |
| Product Material | Copper |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Connector Details | 1 x (Fork Terminal) |
| Product Type | Terminal Connector |
| Color Coding | Metallic |
| Max Operating Temperature | 150 degrees celsius |
| Barrel Type | Beveled |
| Outside Diameter Inches | 0.22 in |
| Product Class | Wire Termination |
| Package Quantity | 50 |
