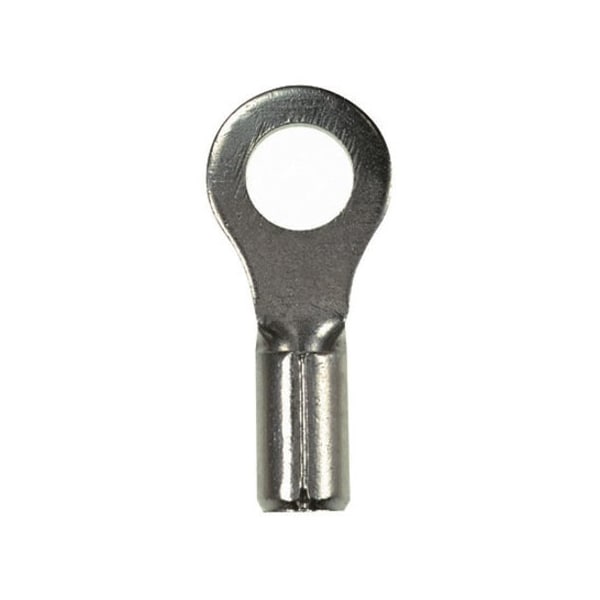

Terminal de anillo sin aislar de calibre 12-10, con perno de 1/4", paquete de 500 unidades.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | 1/4" |
| Insulation Color | Bare |
| Item | Ring Terminal |
| Max. Voltage | 2,000 V |
| Connection Material | Tin-Plated Copper |
| Seam | Brazed |
| Barrel Inside Dia. | 0.13 in |
| Standards | cULus Listed 587H E52164 |
| Max. Temp. | 650 deg F |
| Features | Brazed Seam |
| Overall Length | 0.96 in |
| Terminal Type | Ring Tongue |
| Tongue Width - Wire Connector | 0.53 in |
| Finish | Tin-Plated |
| Length | 1 in |
| Width | 1/2 in |
| Product Name | Terminal Connector |
| Product Type | Terminal Connector |
| Product Material | Copper |
| Connector Details | 1 x (Ring Terminal) |
| Connector Plating | Nickel |
| Barrel Type | Beveled |
| Max Operating Temperature | 150 degrees celsius |
| Product Class | Wire Termination |
| Color Coding | Silver |
| Outside Diameter Inches | 0.52 in |
| Package Quantity | 500 |
