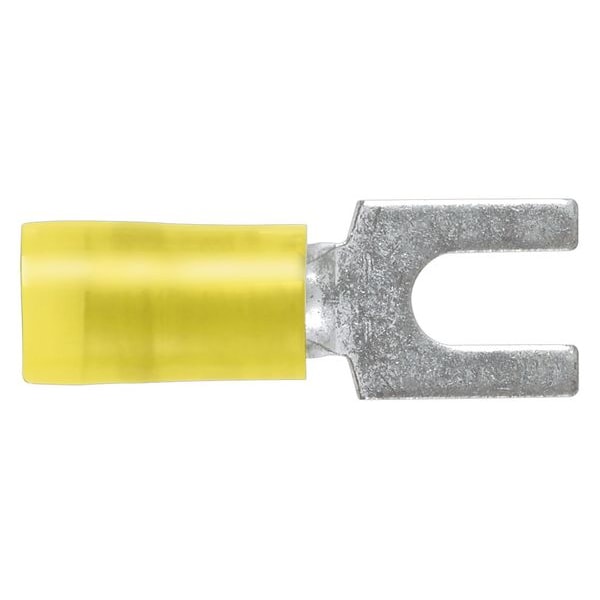

Terminal de horquilla de nylon 12-10 AWG, para tornillo de tamaño #10, paquete de 50 unidades.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #10 |
| Insulation Color | Yellow |
| Tongue Width - Wire Connector | 0.37 in |
| Connection Material | Copper |
| Terminal Type | Standard |
| Terminal Connection | Crimp |
| Overall Length | 1.04 in |
| Seam | Grip Sleeved |
| Max. Temp. | 221 deg F |
| Item | Fork Terminal |
| Standards | CSA Certified, UL Listed |
| Max. Voltage | 600 V |
| Features | Barrel of Terminal Internally Beveled to Provide, Fork Design Provides for Fast and Easy Installation, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Without The Need to Remove Fastener |
| Connection Type | Crimp |
| Minimum Wire Size | 12 AWG |
| Terminal Shape | Fork |
| Compatible with Product Type | Crimper, Crimp Tool, Micro Crimp |
| Barrel Length | 0.52 in |
| Barrel Style | Insulation Grip |
| UL 94 Flammability Rating | HB |
| Maximum Operating Temperature | 221 deg F |
| Maximum Wire Size | 10 AWG |
| Compatible with Series | CT |
| Insulation Material | Nylon |
| Strip Length | 1/4 in |
| Contact Finish | Tin |
| Contact Material | Copper |
| Tongue Thickness | 0.04 in |
| Compatible Manufacturer Model Number | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Termination Style | Crimp |
| Special Features | Fork Design Provides for Fast and Easy Installation Without the Need to Remove Fastener, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications |
| Tongue Length | 0.51 - 1.00 inches |
| Tongue Width | 0.37 in |
| Seam Style | Butted |
| Maximum Voltage | 600 V |
| Insulation Dia | 0.225 in |
| Fork Type | Standard |
| Tongue Length (mm) | 13.2 |
| Barrel Length (In.) | 0.52 |
| Overall Length (mm) | 26.42 |
| Maximum Operating Temperature (°C) | 105 |
| Base Material | Copper |
| Overall Length (In.) | 1.04 |
| Maximum Operating Temperature (°F) | 221 |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (mm) | 5 |
| Packaging Type | Bottle |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Sub Brand | Pan-Term® |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Overall Width (mm) | 9.4 |
| Stud Hole Size (In.) | #10 |
| Barrel Length (mm) | 13.2 |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Tongue Width (In.) | 0.37 |
| Wire Strip Length (mm) | 7.1 |
| Tongue Length (In.) | 0.52 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Tongue Thickness (mm) | 1 |
| Seam Type | Butted |
| Overall Width (In.) | 0.37 |
| Color Code | Yellow |
| Flammability Rating | UL94-HB |
| Maximum Wire Size (AWG) | #10 |
| Maximum Wire Insulation Diameter (In.) | 0.225 |
| Maximum Voltage (kV) | 0.6 |
| Wire Strip Length (In.) | 11,933 |
| Minimum Wire Size (AWG) | #12 |
| Barrel Type | Grip Sleeve |
| Tongue Width (mm) | 9.4 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Maximum Voltage (V) | 600 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Wire Insulation Diameter (mm) | 5.72 |
| Tongue Thickness (In.) | 0.04 |
| Product Type | Fork Terminal |
| Package Quantity | 50 |
