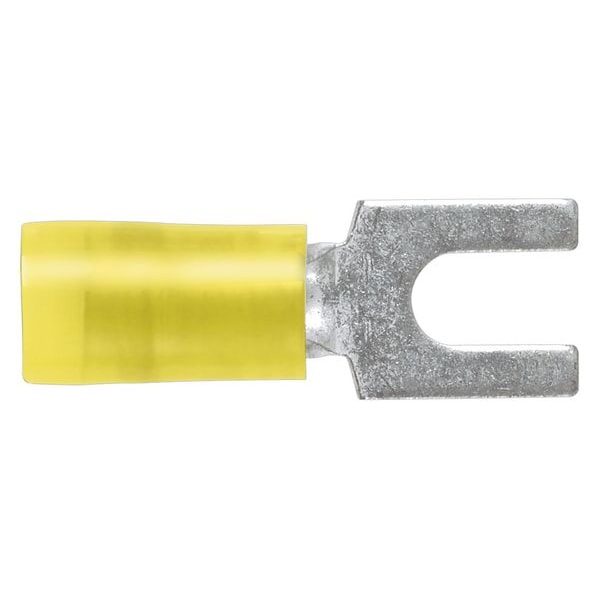

Terminal de horquilla de Nylon de 12-10 AWG con perno de 1/4", paquete de 50 piezas.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | 1/4 in |
| Insulation Color | Yellow |
| Features | Barrel of Terminal Internally Beveled to Provide, Fork Design Provides for Fast and Easy Installation, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Without The Need to Remove Fastener |
| Terminal Connection | Crimp |
| Connection Material | Copper |
| Tongue Width - Wire Connector | 0.49 in |
| Max. Temp. | 221 deg F |
| Connection Type | Crimp |
| Max. Voltage | 600 V |
| Standards | CSA Certified, UL 587-H, UL Listed |
| Item | Fork Terminal |
| Seam | Grip Sleeved |
| Overall Length | 1.14 in |
| Terminal Type | Standard |
| Width | 1/2 in |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Length | 1.1 in |
| Compatible with Series | CT |
| Compatible with Product Type | Crimp Tool |
| Insulation Material | Nylon |
| Maximum Wire Size | 10 AWG |
| Minimum Wire Size | 12 AWG |
| Contact Material | Copper |
| Tongue Thickness | 0.04 in |
| Contact Finish | Tin |
| Compatible Manufacturer Model Number | CT-100, CT-1550, CT-1551 |
| Tongue Length | 0.51 - 1.00 inches |
| Maximum Operating Temperature | 221 deg F |
| Seam Style | Grip Sleeved |
| Barrel Length | 0.57 in |
| Maximum Voltage | 600 V |
| Barrel Style | Insulation Grip |
| Special Features | Fork Design Provides for Fast and Easy Installation Without the Need to Remove Fastener, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications |
| Terminal Shape | Fork |
| Strip Length | 1/4 in |
| Tongue Width | 0.49 in |
| Termination Style | Crimp |
| Insulation Dia | 0.225 in |
| Connector Type | Fork Terminal |
| Environmentally Friendly | Yes |
| Connector Details | 1 x (Fork Terminal) |
| Product Color | Yellow |
| Diameter | 0.2" |
| Connector Plating | Tin |
| Product Type | Terminal Connector |
| Product Name | Terminal Connector |
| Product Material | Copper |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Seam Type | Butted |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Tongue Width (In.) | 0.49 |
| Wire Strip Length (In.) | 11,933 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Tongue Length (In.) | 0.57 |
| Maximum Wire Size (AWG) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Color Code | Yellow |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.225 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Overall Length (In.) | 1.14 |
| Stud Hole Size (mm) | 6 |
| Barrel Type | Grip Sleeve |
| Base Material | Copper |
| Maximum Operating Temperature (°C) | 105 |
| Barrel Length (mm) | 14.5 |
| Overall Width (mm) | 12.4 |
| Overall Width (In.) | 0.49 |
| Barrel Length (In.) | 0.57 |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Voltage (V) | 600 |
| Stud Hole Size (In.) | 1/4" |
| Tongue Thickness (In.) | 0.04 |
| Tongue Length (mm) | 14.5 |
| Packaging Type | Bottle |
| Fork Type | Standard |
| Minimum Copper Conductor Size (AWG) | #12 |
| Sub Brand | Pan-Term® |
| Wire Strip Length (mm) | 7.1 |
| Maximum Voltage (kV) | 0.6 |
| Flammability Rating | UL94-HB |
| Maximum Wire Insulation Diameter (mm) | 5.72 |
| Tongue Thickness (mm) | 1 |
| Overall Length (mm) | 29 |
| Finish/Coating | Tin-Plated |
| Tongue Width (mm) | 12.4 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Operating Temperature (°C) | 105 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Package Quantity | 50 |
