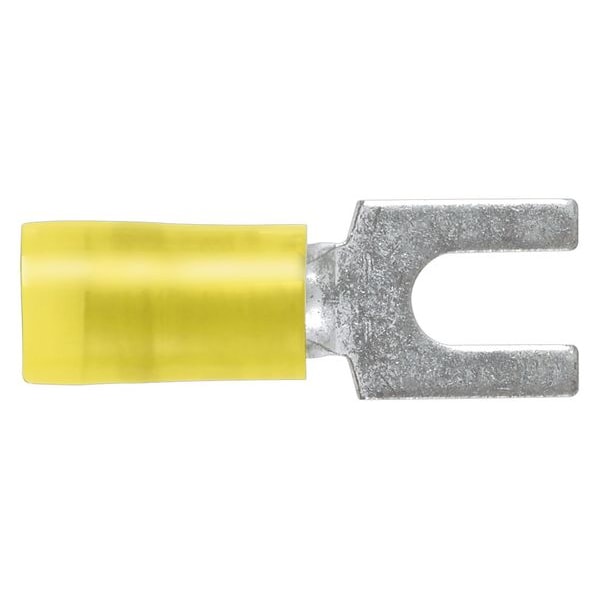

12-10 AWG Nylon Fork Terminal #6 Stud PK50
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #6 |
| Insulation Color | Yellow |
| Tongue Width - Wire Connector | 0.31 in |
| Max. Temp. | 221 deg F |
| Connection Type | Crimp |
| Terminal Type | Standard |
| Standards | CSA Certified, UL 587-H, UL Listed |
| Seam | Grip Sleeved |
| Overall Length | 1 in |
| Features | Barrel of Terminal Internally Beveled to Provide, Fork Design Provides for Fast and Easy Installation, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Without The Need to Remove Fastener |
| Max. Voltage | 600 V |
| Connection Material | Copper |
| Terminal Connection | Crimp |
| Item | Fork Terminal |
| Length | 1 in |
| Width | 0.3 in |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Strip Length | 1/4 in |
| Maximum Operating Temperature | 221 deg F |
| Compatible with Series | CT |
| Seam Style | Grip Sleeved |
| Special Features | Fork Design Provides for Fast and Easy Installation Without the Need to Remove Fastener, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications |
| Termination Style | Crimp |
| Terminal Shape | Fork |
| Barrel Style | Insulation Grip |
| Minimum Wire Size | 12 AWG |
| Compatible with Product Type | Crimp Tool |
| Maximum Voltage | 600 V |
| Contact Finish | Tin |
| Contact Material | Copper |
| Compatible Manufacturer Model Number | CT-100, CT-1550, CT-1551 |
| Tongue Thickness | 0.04 in |
| Insulation Material | Nylon |
| Tongue Length | 0.00 - 0.50 inches |
| Tongue Width | 0.31 in |
| Barrel Length | 1/2 in |
| Maximum Wire Size | 10 AWG |
| Insulation Dia | 0.225 in |
| Environmentally Friendly | Yes |
| Connector Plating | Tin |
| Diameter | 0.2" |
| Product Material | Nylon |
| Connector Details | 1 x (Fork Terminal) |
| Connector Type | Fork Terminal |
| Product Type | Terminal Connector |
| Product Name | Terminal Connector |
| Product Color | Yellow |
| Overall Length (mm) | 25.4 |
| Tongue Width (In.) | 0.31 |
| Sub Brand | Pan-Term® |
| Seam Type | Butted |
| Overall Length (In.) | 1 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Base Material | Copper |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Tongue Length (In.) | 0.5 |
| Maximum Wire Insulation Diameter (mm) | 5.72 |
| Stud Hole Size (mm) | 3.5 |
| Overall Width (In.) | 0.31 |
| Wire Strip Length (mm) | 7.1 |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Color Code | Yellow |
| Overall Width (mm) | 7.9 |
| Finish/Coating | Tin-Plated |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Operating Temperature (°F) | 221 |
| Tongue Thickness (mm) | 1 |
| Tongue Width (mm) | 7.9 |
| Barrel Type | Grip Sleeve |
| Maximum Wire Insulation Diameter (In.) | 0.225 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Tongue Length (mm) | 12.7 |
| Flammability Rating | UL94-HB |
| Packaging Type | Bottle |
| Fork Type | Standard |
| Maximum Voltage (kV) | 0.6 |
| Tongue Thickness (In.) | 0.04 |
| Maximum Operating Temperature (°C) | 105 |
| Barrel Length (In.) | 1/2 |
| Minimum Wire Size (AWG) | #12 |
| Barrel Length (mm) | 12.7 |
| Stud Hole Size (In.) | #6 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Wire Strip Length (In.) | 11,933 |
| Maximum Wire Size (AWG) | #10 |
| Maximum Voltage (V) | 600 |
| Package Quantity | 50 |
