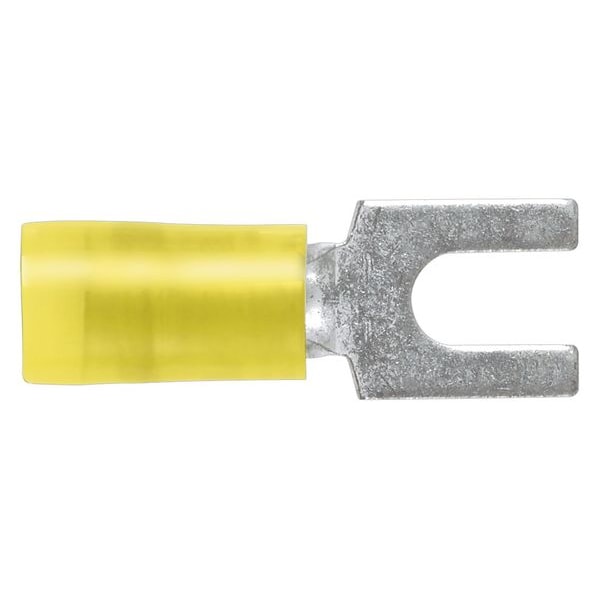

Terminal de horquilla de nylon calibre 12-10, para perno #8, paquete de 50 unidades.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #8 |
| Insulation Color | Yellow |
| Tongue Width - Wire Connector | 0.37 in |
| Seam | Grip Sleeved |
| Terminal Type | Standard |
| Features | Barrel of Terminal Internally Beveled to Provide, Fork Design Provides for Fast and Easy Installation, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Without The Need to Remove Fastener |
| Standards | CSA Certified, UL Listed |
| Terminal Connection | Crimp |
| Max. Voltage | 600 V |
| Connection Material | Copper |
| Connection Type | Crimp |
| Overall Length | 1.03 in |
| Item | Fork Terminal |
| Max. Temp. | 221 deg F |
| Length | 1 in |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Width | 0.4 in |
| Compatible with Product Type | Crimper, Crimp Tool, Micro Crimp |
| Terminal Shape | Fork |
| Seam Style | Butted |
| Special Features | Fork Design Provides for Fast and Easy Installation Without the Need to Remove Fastener, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications |
| Compatible Manufacturer Model Number | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Contact Material | Copper |
| Termination Style | Crimp |
| Tongue Thickness | 0.04 in |
| Insulation Material | Nylon |
| Minimum Wire Size | 12 AWG |
| Contact Finish | Tin |
| Tongue Width | 0.37 in |
| UL 94 Flammability Rating | HB |
| Tongue Length | 0.51 - 1.00 inches |
| Barrel Length | 0.52 in |
| Maximum Voltage | 600 V |
| Maximum Operating Temperature | 221 deg F |
| Maximum Wire Size | 10 AWG |
| Compatible with Series | CT |
| Strip Length | 1/4 in |
| Barrel Style | Insulation Grip |
| Insulation Dia | 0.225 in |
| Diameter | 0.2" |
| Product Name | Terminal Connector |
| Product Material | Nylon |
| Environmentally Friendly | Yes |
| Connector Plating | Tin |
| Product Color | Yellow |
| Connector Details | 1 x (Fork Terminal) |
| Product Type | Terminal Connector |
| Connector Type | Fork Terminal |
| Flammability Rating | UL94-HB |
| Overall Length (In.) | 1.03 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Tongue Length (mm) | 13.1 |
| Overall Width (mm) | 9.4 |
| Wire Strip Length (mm) | 7.1 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Overall Length (mm) | 26.16 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Tongue Thickness (In.) | 0.04 |
| Color Code | Yellow |
| Base Material | Copper |
| Barrel Length (In.) | 0.52 |
| Finish/Coating | Tin-Plated |
| Packaging Type | Bottle |
| Maximum Voltage (V) | 600 |
| Tongue Width (In.) | 0.37 |
| Overall Width (In.) | 0.37 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Fork Type | Standard |
| Sub Brand | Pan-Term® |
| Minimum Wire Size (AWG) | #12 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Barrel Type | Grip Sleeve |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Seam Type | Butted |
| Maximum Voltage (kV) | 0.6 |
| Wire Strip Length (In.) | 11,933 |
| Tongue Width (mm) | 9.4 |
| Stud Hole Size (mm) | 4 |
| Maximum Wire Insulation Diameter (mm) | 5.72 |
| Stud Hole Size (In.) | #8 |
| Tongue Thickness (mm) | 1 |
| Maximum Wire Insulation Diameter (In.) | 0.225 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Tongue Length (In.) | 0.52 |
| Maximum Operating Temperature (°F) | 221 |
| Barrel Length (mm) | 13.1 |
| Maximum Operating Temperature (°C) | 105 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Package Quantity | 50 |
