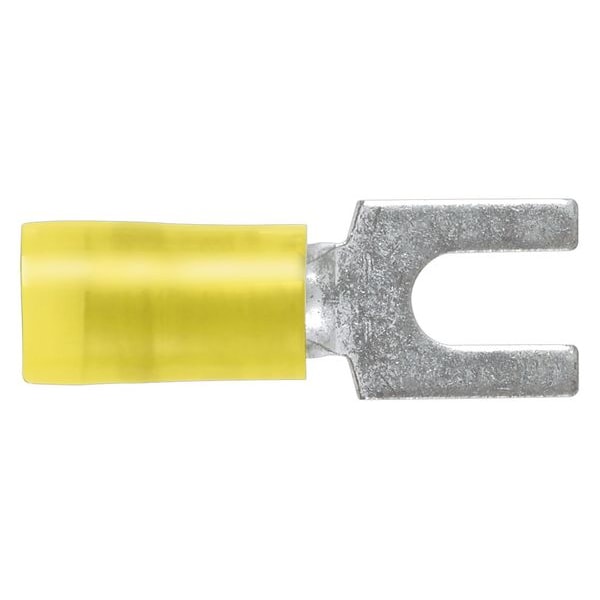

Terminal tipo horquilla de nylon para cable de calibre 12-10, con perno de tamaño #8, paquete de 500 unidades.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #8 |
| Insulation Color | Yellow |
| Connection Type | Crimp |
| Seam | Grip Sleeved |
| Max. Temp. | 221 deg F |
| Terminal Type | Standard |
| Features | Barrel of Terminal Internally Beveled to Provide, Fork Design Provides for Fast and Easy Installation, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Without The Need to Remove Fastener |
| Standards | CSA Certified, UL 587-H, UL Listed |
| Tongue Width - Wire Connector | 0.37 in |
| Overall Length | 1.03 in |
| Terminal Connection | Crimp |
| Connection Material | Copper |
| Item | Fork Terminal |
| Max. Voltage | 600 V |
| Material | Copper, Nylon |
| Tongue Thickness | 0.04 in |
| Compatible with Series | CT |
| Special Features | Fork Design Provides for Fast and Easy Installation Without the Need to Remove Fastener, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications |
| Contact Material | Copper |
| Strip Length | 1/4 in |
| Maximum Operating Temperature | 221 deg F |
| Barrel Style | Insulation Grip |
| Insulation Material | Nylon |
| Maximum Voltage | 600 V |
| Minimum Wire Size | 12 AWG |
| Terminal Shape | Fork |
| Seam Style | Grip Sleeved |
| Compatible with Product Type | Crimp Tool |
| Compatible Manufacturer Model Number | CT-100, CT-1550, CT-1551 |
| Termination Style | Crimp |
| Tongue Width | 0.37 in |
| Contact Finish | Tin |
| Tongue Length | 0.51 - 1.00 inches |
| Maximum Wire Size | 10 AWG |
| Barrel Length | 0.52 in |
| Package Quantity | 500 |
