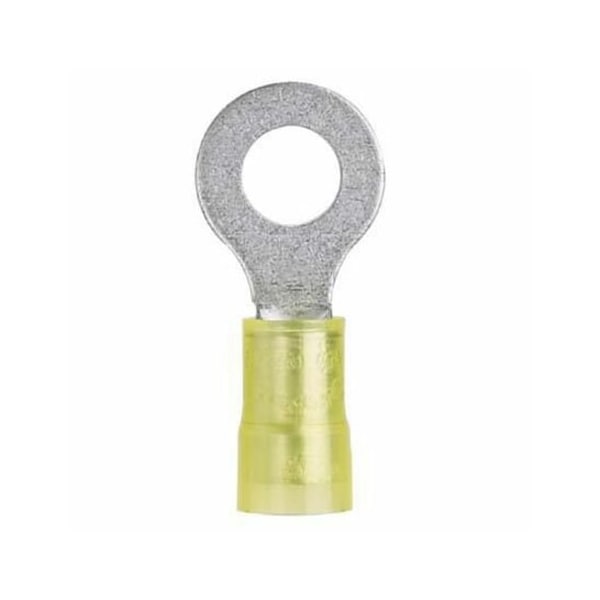

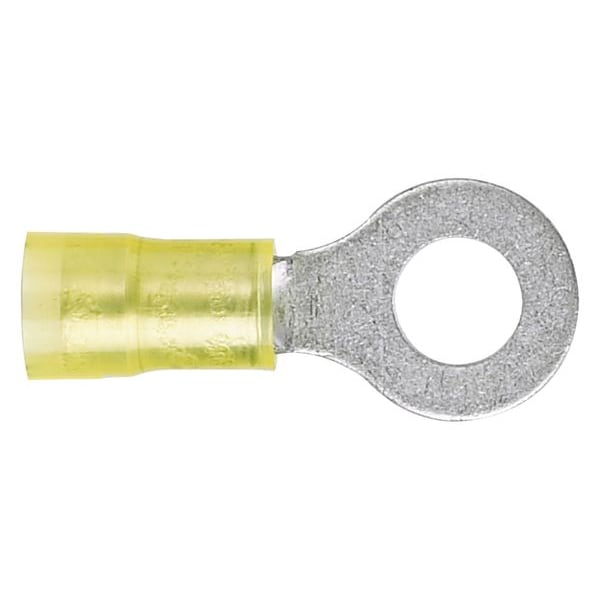

12-10 AWG Nylon Ring Terminal #10 Stud PK50
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #10 |
| Insulation Color | Yellow |
| Overall Length | 1.08 in |
| Max. Temp. | 221 deg F |
| Item | Ring Terminal |
| Terminal Connection | Crimp |
| Standards | CSA C22.2 No. 65, UL 486A, UL 486B |
| Tongue Width - Wire Connector | 0.38 in |
| Seam | Grip Sleeved |
| Green Environmental Attribute | Does Not Contain PVC |
| Max. Voltage | 600 V |
| Connection Type | Crimp |
| Connection Material | Copper |
| Terminal Type | Ring Tongue |
| Features | Flame Retardant |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Width | 0.4 in |
| Length | 1.1 in |
| UL 94 Flammability Rating | HB |
| Minimum Wire Size | 12 AWG |
| Tongue Thickness | 0.04 in |
| Contact Finish | Tin |
| Seam Style | Grip Sleeved |
| Terminal Shape | Ring Terminal |
| Compatible Manufacturer Model Number | CT-100, CT-1550, CT-1551, CT-2300/ST, CT-2500/L, UP14ZLW |
| Insulation Material | Nylon |
| Maximum Voltage | 600 V |
| Insulation Coverage | Partial Coverage |
| Termination Style | Crimp |
| Minimum Operating Temperature | 221 deg F |
| Maximum Operating Temperature | 221 deg F |
| Special Features | Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications, Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| Contact Material | Copper |
| Barrel Style | Insulation Grip |
| Hole Diameter | 0.2 in |
| Maximum Wire Size | 10 AWG |
| Tongue Width | 0.38 in |
| Strip Length | 1/4 in |
| Insulation Dia | 0.225 in |
| Product Color | Yellow |
| Product Type | Terminal Connector |
| Connector Type | Ring Terminal |
| Connector Details | 1 x (Ring Terminal) |
| Product Name | Terminal Connector |
| Product Material | Copper |
| Connector Plating | Tin |
| Environmentally Friendly | Yes |
| Stud Hole Size (mm) | 5 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-112) |
| Flammability Rating | UL94-HB |
| Overall Width (In.) | 0.38 |
| Maximum Operating Temperature (°C) | 105 |
| Base Material | Copper |
| Minimum Metric Conductor Size (mm²) | 4 |
| Tongue Width (In.) | 0.38 |
| Finish/Coating | Tin-Plated |
| Sub Brand | Pan-Term® |
| Maximum Wire Insulation Diameter (In.) | 0.225 |
| Maximum Voltage (V) | 600 |
| Tongue Thickness (mm) | 1.02 |
| Maximum Operating Temperature (°F) | 221 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Tongue Thickness (In.) | 0.04 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Tongue Width (mm) | 9.7 |
| Minimum Wire Size (AWG) | #12 |
| Overall Length (In.) | 1.06 |
| Color Code | Yellow |
| Overall Width (mm) | 9.7 |
| Maximum Wire Size (AWG) | #10 |
| Barrel Type | Grip Sleeve |
| Maximum Copper Conductor Size (AWG) | #10 |
| Wire Strip Length (mm) | 7.1 |
| Packaging Type | Bottle |
| Overall Length (mm) | 26.9 |
| Maximum Voltage (kV) | 0.6 |
| Stud Hole Size (In.) | #10 |
| Wire Strip Length (In.) | 11,933 |
| Maximum Wire Insulation Diameter (mm) | 5.72 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Package Quantity | 50 |
