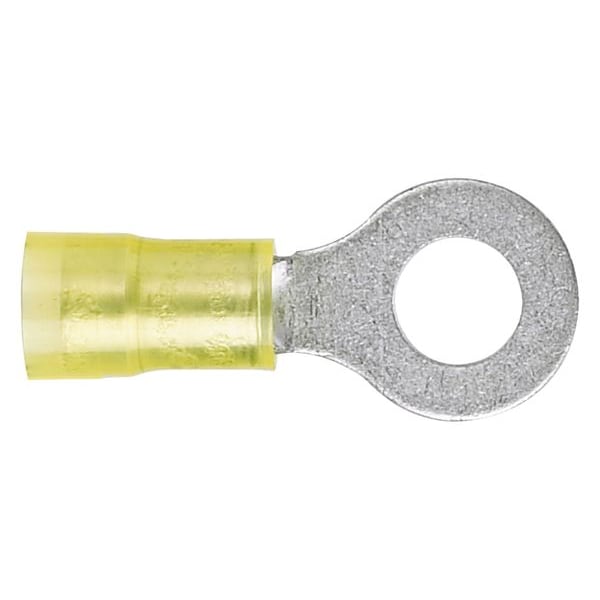

Terminal de anillo de nylon para cable calibre 12-10, con tornillo #10. Paquete de 500.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #10 |
| Insulation Color | Yellow |
| Standards | CSA C22.2 No. 65, UL 486A, UL 486B |
| Green Environmental Attribute | Does Not Contain PVC |
| Connection Material | Copper |
| Terminal Connection | Crimp |
| Seam | Grip Sleeved |
| Item | Ring Terminal |
| Overall Length | 1.08 in |
| Connection Type | Crimp |
| Max. Voltage | 600 V |
| Tongue Width - Wire Connector | 0.38 in |
| Max. Temp. | 221 deg F |
| Terminal Type | Ring Tongue |
| Compatible Manufacturer Model Number | CT-100, CT-1550, CT-1551, CT-2300/ST, CT-2500/L, UP14ZLW |
| Hole Diameter | 0.2 in |
| Strip Length | 1/4 in |
| Maximum Operating Temperature | 221 deg F |
| Special Features | Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications, Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| Seam Style | Grip Sleeved |
| Termination Style | Crimp |
| Insulation Coverage | Partial Coverage |
| Terminal Shape | Ring Terminal |
| Contact Material | Copper |
| Tongue Thickness | 0.04 in |
| Maximum Wire Size | 10 AWG |
| Barrel Style | Insulation Grip |
| Minimum Operating Temperature | 221 deg F |
| Minimum Wire Size | 12 AWG |
| Maximum Voltage | 600 V |
| Contact Finish | Tin |
| Tongue Width | 0.38 in |
| Insulation Material | Nylon |
| UL 94 Flammability Rating | HB |
| Insulation Dia | 0.225 in |
| Width | 0.38 in |
| Product Model | PN10-10R-D |
| Certifications & Standards | UL 94V-2/HB |
| Product Type | Cable Tying |
| Environmentally Friendly | Yes |
| Product Color | Yellow |
| Product Material | Nylon |
| Product Name | PN10-10R-D Ring Terminal |
| Cable Manager Type | Ring |
| Length | 1.06 in |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (mm) | 5.72 |
| Tongue Thickness (In.) | 0.04 |
| Maximum Wire Insulation Diameter (In.) | 0.225 |
| Overall Length (In.) | 1.06 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-112) |
| Minimum Wire Size (AWG) | #12 |
| Overall Width (mm) | 9.7 |
| Wire Strip Length (mm) | 7.1 |
| Wire Strip Length (In.) | 11,933 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Packaging Type | Box |
| Maximum Wire Size (AWG) | #10 |
| Tongue Thickness (mm) | 1.02 |
| Maximum Voltage (kV) | 0.6 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Maximum Voltage (V) | 600 |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Tongue Width (mm) | 9.7 |
| Overall Width (In.) | 0.38 |
| Barrel Type | Grip Sleeve |
| Maximum Operating Temperature (°C) | 105 |
| Tongue Width (In.) | 0.38 |
| Stud Hole Size (mm) | 5 |
| Base Material | Copper |
| Flammability Rating | UL94-HB |
| Overall Length (mm) | 26.9 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Color Code | Yellow |
| Maximum Copper Conductor Size (AWG) | #10 |
| Sub Brand | Pan-Term® |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | #10 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Package Quantity | 500 |
