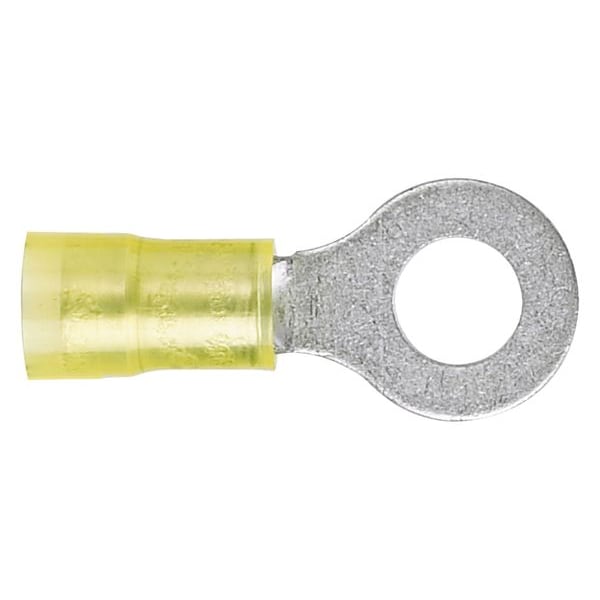

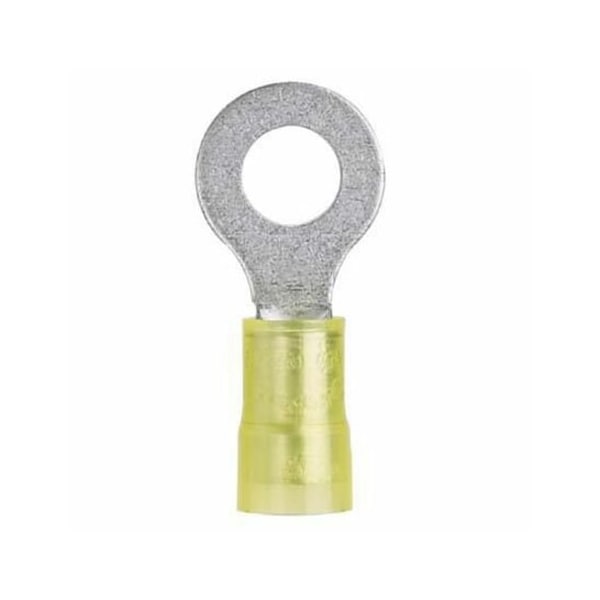

Terminal anular de nylon de calibre 12-10 AWG con perno de 1/2", paquete de 25 unidades.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | 1/2 in |
| Insulation Color | Yellow |
| Connection Type | Crimp |
| Connection Material | Copper |
| Green Environmental Attribute | Does Not Contain PVC |
| Item | Ring Terminal |
| Overall Length | 1.47 in |
| Tongue Width - Wire Connector | 0.72 in |
| Max. Voltage | 600 V |
| Max. Temp. | 221 deg F |
| Seam | Grip Sleeved |
| Terminal Connection | Crimp |
| Standards | CSA C22.2 No. 65, UL 486A, UL 486B |
| Terminal Type | Ring Tongue |
| Features | Flame Retardant |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Width | 0.7 in |
| Length | 1-1/2 in |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | 221 deg F |
| Barrel Length | 0.74 in |
| Contact Material | Copper |
| Insulation Material | Nylon |
| Minimum Wire Size | 12 AWG |
| Hole Diameter | 0.52 in |
| Tongue Thickness | 0.04 in |
| Strip Length | 1/4 in |
| Barrel Style | Insulation Grip |
| Seam Style | Grip Sleeved |
| Maximum Operating Temperature | 221 deg F |
| Contact Finish | Tin |
| Tongue Width | 0.72 in |
| UL 94 Flammability Rating | HB, V-2 |
| Tongue Length | 0.74 in |
| Special Features | Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications, Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| Terminal Shape | Ring Terminal |
| Maximum Voltage | 600 V |
| Termination Style | Crimp |
| Insulation Coverage | Partial Coverage |
| Insulation Dia | 0.23 in |
| Connector Type | Ring Terminal |
| Product Name | Terminal Connector |
| Environmentally Friendly | Yes |
| Package Type | Bulk |
| Connector Plating | Tin |
| Product Type | Terminal Connector |
| Product Material | Copper |
| Connector Details | 1 x (Ring Terminal) |
| Product Color | Yellow |
| Stud Hole Size (In.) | 1/2" |
| Insulation Diameter (In.) | 0.23 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Tongue Thickness (mm) | 1 |
| Overall Length (mm) | 37.3 |
| Barrel Length (mm) | 18.8 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Tongue Width (mm) | 18.3 |
| Maximum Operating Temperature (°F) | 221 |
| Overall Width (In.) | 0.72 |
| Maximum Wire Insulation Diameter (mm) | 5.8 |
| Maximum Wire Size (AWG) | #12 |
| Maximum Operating Temperature (°C) | 105 |
| Stud Hole Size (mm) | 12 |
| Packaging Type | Bag |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Overall Length (In.) | 1.47 |
| Maximum Voltage (V) | 600 |
| Minimum Wire Insulation Diameter (mm) | 3 |
| Flammability Rating | UL94V-2/UL94-HB |
| Insulation Diameter (mm) | 5.8 |
| Overall Width (mm) | 18.3 |
| Tongue Length (In.) | 0.74 |
| Minimum Wire Size (AWG) | #12 |
| Barrel Type | Grip Sleeve |
| Note | PN10-12R-Q replaces PN10-12R-L |
| Minimum Wire Insulation Diameter (In.) | 0.12 |
| Wire Strip Length (mm) | 7.1 |
| Maximum Copper Conductor Size (AWG) | #12 |
| Tongue Thickness (In.) | 0.04 |
| CSA Temperature Rating (°C) | 105 |
| Tongue Width (In.) | 0.72 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Voltage (kV) | 0.6 |
| Maximum Wire Insulation Diameter (In.) | 0.23 |
| Tongue Length (mm) | 18.8 |
| Color Code | Yellow |
| Finish/Coating | Tin-Plated |
| Sub Brand | Pan-Term® |
| Barrel Length (In.) | 0.74 |
| Wire Strip Length (In.) | 11,933 |
| Base Material | Copper |
| Maximum Operating Temperature (°C) | 105 |
| CSA Temperature Rating (°C) | 105 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Maximum Operating Temperature (°F) | 221 |
| Package Quantity | 25 |
