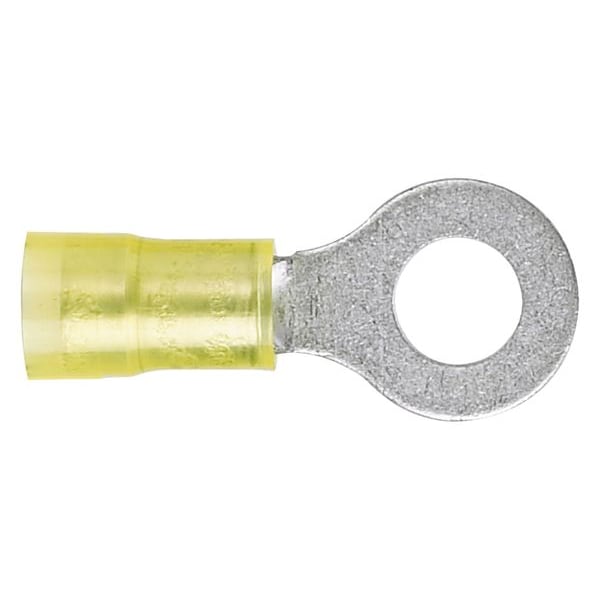

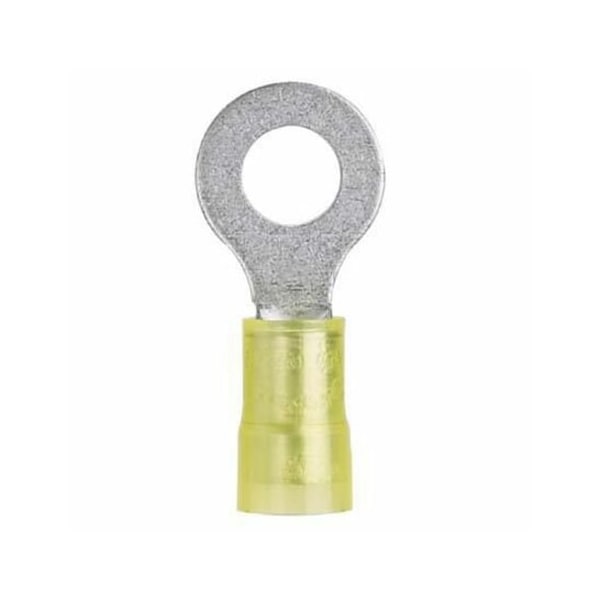

Terminal de anillo de nylon de calibre 12-10 con perno de 1/4 de pulgada - paquete de 50
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | 1/4 in |
| Insulation Color | Yellow |
| Standards | CSA C22.2 No. 65, UL 486A, UL 486B |
| Terminal Connection | Crimp |
| Max. Voltage | 600 V |
| Item | Ring Terminal |
| Connection Material | Copper |
| Green Environmental Attribute | Does Not Contain PVC |
| Seam | Grip Sleeved |
| Overall Length | 1.21 in |
| Tongue Width - Wire Connector | 0.52 in |
| Connection Type | Crimp |
| Max. Temp. | 221 deg F |
| Features | Flame Retardant |
| Terminal Type | Ring Tongue |
| Length | 1.2 in |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Width | 1/2 in |
| Strip Length | 1/4 in |
| Insulation Material | Nylon |
| Insulation Coverage | Partial Coverage |
| Tongue Width | 0.52 in |
| Maximum Operating Temperature | 221 deg F |
| Termination Style | Crimp |
| Barrel Style | Insulation Grip |
| Contact Material | Copper |
| Hole Diameter | 0.27 in |
| Compatible Manufacturer Model Number | CT-100, CT-1550, CT-1551, CT-2300/ST, CT-2500/L, UP14ZLW |
| Maximum Wire Size | 10 AWG |
| Tongue Thickness | 0.04 in |
| Seam Style | Grip Sleeved |
| Terminal Shape | Ring Terminal |
| Minimum Wire Size | 12 AWG |
| Contact Finish | Tin |
| Special Features | Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications, Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| UL 94 Flammability Rating | HB |
| Minimum Operating Temperature | 221 deg F |
| Maximum Voltage | 600 V |
| Insulation Dia | 0.225 in |
| Connector Plating | Tin |
| Product Color | Yellow |
| Connector Details | 1 x (Ring Terminal) |
| Connector Type | Ring Terminal |
| Product Name | Terminal Connector |
| Environmentally Friendly | Yes |
| Product Type | Terminal Connector |
| Product Material | Copper |
| Tongue Width (In.) | 0.52 |
| Overall Length (In.) | 1.21 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Wire Insulation Diameter (mm) | 5.72 |
| Barrel Type | Grip Sleeve |
| Overall Width (In.) | 0.52 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Pan-Term® |
| Flammability Rating | UL94-HB |
| Maximum Wire Insulation Diameter (In.) | 0.225 |
| Maximum Wire Size (AWG) | #10 |
| Tongue Thickness (mm) | 1.02 |
| Finish/Coating | Tin-Plated |
| Wire Strip Length (In.) | 11,933 |
| Maximum Voltage (kV) | 0.6 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Wire Strip Length (mm) | 7.1 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-157) |
| Base Material | Copper |
| Overall Width (mm) | 13.2 |
| Tongue Thickness (In.) | 0.04 |
| Stud Hole Size (mm) | 6 |
| Stud Hole Size (In.) | 1/4" |
| Overall Length (mm) | 30.7 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Color Code | Yellow |
| Tongue Width (mm) | 13.2 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Packaging Type | Bottle |
| Maximum Voltage (V) | 600 |
| Minimum Wire Size (AWG) | #12 |
| Maximum Operating Temperature (°C) | 105 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Maximum Operating Temperature (°F) | 221 |
| Package Quantity | 50 |
