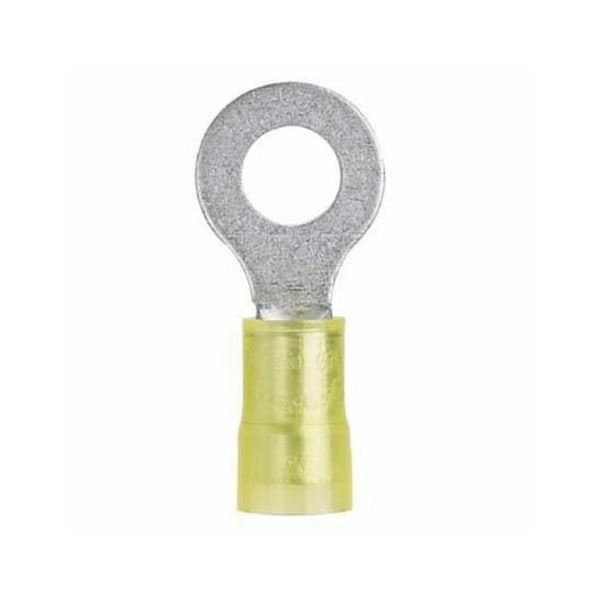

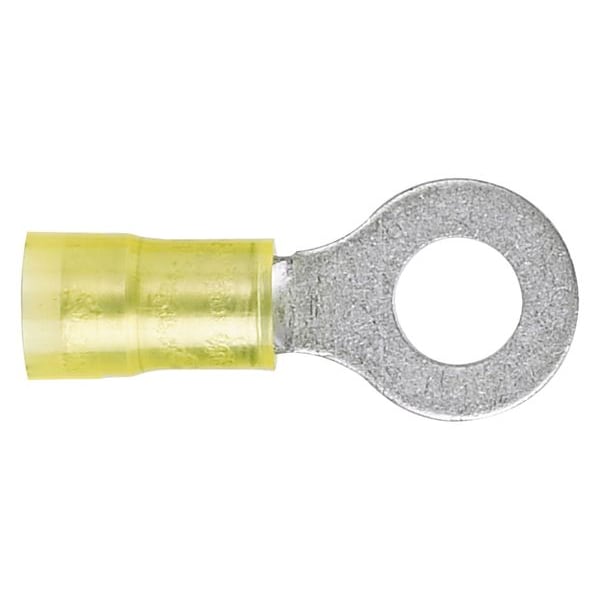

Terminal de anillo de Nylon de calibre 12-10, con perno de 1/4" en paquete de 500 unidades.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | 1/4 in |
| Insulation Color | Yellow |
| Terminal Connection | Crimp |
| Connection Material | Copper |
| Max. Temp. | 221 deg F |
| Overall Length | 1.21 in |
| Item | Ring Terminal |
| Connection Type | Crimp |
| Standards | CSA C22.2 No. 65, UL 486A, UL 486B |
| Tongue Width - Wire Connector | 0.52 in |
| Seam | Grip Sleeved |
| Max. Voltage | 600 V |
| Green Environmental Attribute | Does Not Contain PVC |
| Features | Flame Retardant |
| Terminal Type | Ring Tongue |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Length | 1.2 in |
| Width | 1/2 in |
| Maximum Operating Temperature | 221 deg F |
| Minimum Operating Temperature | 221 deg F |
| Barrel Style | Insulation Grip |
| Seam Style | Grip Sleeved |
| Contact Finish | Tin |
| Termination Style | Crimp |
| Maximum Voltage | 600 V |
| Contact Material | Copper |
| Minimum Wire Size | 12 AWG |
| Insulation Coverage | Partial Coverage |
| Special Features | Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications, Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| Tongue Width | 0.52 in |
| Terminal Shape | Ring Terminal |
| Strip Length | 1/4 in |
| Insulation Material | Nylon |
| Tongue Thickness | 0.04 in |
| UL 94 Flammability Rating | HB |
| Compatible Manufacturer Model Number | CT-100, CT-1550, CT-1551, CT-2300/ST, CT-2500/L, UP14ZLW |
| Hole Diameter | 0.27 in |
| Maximum Wire Size | 10 AWG |
| Insulation Dia | 0.225 in |
| Connector Plating | Tin |
| Environmentally Friendly | Yes |
| Connector Type | Ring Terminal |
| Product Type | Terminal Connector |
| Product Color | Yellow |
| Connector Details | 1 x (Ring Terminal) |
| Product Name | Terminal Connector |
| Product Material | Copper |
| Package Type | Bulk |
| Tongue Width (In.) | 0.52 |
| Packaging Type | Box |
| Maximum Wire Insulation Diameter (mm) | 5.72 |
| Overall Width (In.) | 0.52 |
| Barrel Type | Grip Sleeve |
| Sub Brand | Pan-Term® |
| Wire Strip Length (In.) | 11,933 |
| Overall Length (In.) | 1.21 |
| Tongue Thickness (In.) | 0.04 |
| Maximum Wire Size (AWG) | #10 |
| Maximum Voltage (kV) | 0.6 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-157) |
| Maximum Copper Conductor Size (AWG) | #10 |
| Stud Hole Size (mm) | 6 |
| Overall Width (mm) | 13.2 |
| Tongue Width (mm) | 13.2 |
| Maximum Operating Temperature (°C) | 105 |
| Wire Strip Length (mm) | 7.1 |
| Maximum Voltage (V) | 600 |
| Color Code | Yellow |
| Flammability Rating | UL94-HB |
| Maximum Metric Conductor Size (mm²) | 6 |
| Overall Length (mm) | 30.7 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Tongue Thickness (mm) | 1.02 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Base Material | Copper |
| Maximum Wire Insulation Diameter (In.) | 0.225 |
| Maximum Operating Temperature (°F) | 221 |
| Stud Hole Size (In.) | 1/4" |
| Minimum Wire Size (AWG) | #12 |
| Finish/Coating | Tin-Plated |
| Maximum Metric Conductor Size (mm²) | 6 |
| Maximum Operating Temperature (°F) | 221 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Maximum Operating Temperature (°C) | 105 |
| Package Quantity | 500 |
