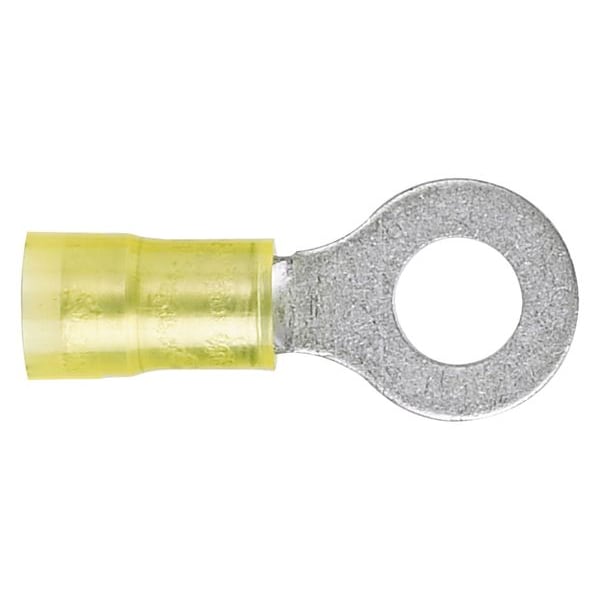

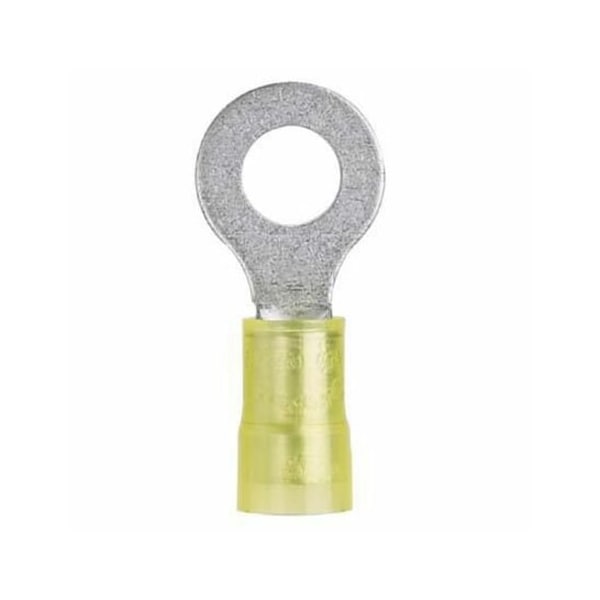

Terminal de anillo de nylon de 12-10 AWG con tornillo de 3/8" - Paquete de 50
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | 3/8 in |
| Insulation Color | Yellow |
| Item | Ring Terminal |
| Connection Type | Crimp |
| Max. Temp. | 221 deg F |
| Tongue Width - Wire Connector | 0.58 in |
| Green Environmental Attribute | Does Not Contain PVC |
| Terminal Connection | Crimp |
| Max. Voltage | 600 V |
| Seam | Grip Sleeved |
| Overall Length | 1.29 in |
| Connection Material | Copper |
| Standards | CSA C22.2 No. 65, UL 486A, UL 486B |
| Terminal Type | Ring Tongue |
| Features | Flame Retardant |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Length | 1.3 in |
| Width | 0.6 in |
| Maximum Wire Size | 10 AWG |
| UL 94 Flammability Rating | HB |
| Terminal Shape | Ring Terminal |
| Contact Material | Copper |
| Contact Finish | Tin |
| Tongue Thickness | 0.04 in |
| Special Features | Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications, Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| Tongue Width | 0.58 in |
| Minimum Operating Temperature | 221 deg F |
| Hole Diameter | 0.39 in |
| Insulation Material | Nylon |
| Termination Style | Crimp |
| Insulation Coverage | Partial Coverage |
| Minimum Wire Size | 12 AWG |
| Maximum Voltage | 600 V |
| Barrel Style | Insulation Grip |
| Compatible Manufacturer Model Number | CT-100, CT-1550, CT-1551, CT-2300/ST, CT-2500/L, UP14ZLW |
| Seam Style | Grip Sleeved |
| Strip Length | 1/4 in |
| Maximum Operating Temperature | 221 deg F |
| Insulation Dia | 0.225 in |
| Environmentally Friendly | Yes |
| Connector Details | 1 x (Ring Terminal) |
| Product Material | Copper |
| Product Type | Terminal Connector |
| Connector Plating | Tin |
| Product Color | Yellow |
| Connector Type | Ring Terminal |
| Product Name | Terminal Connector |
| Tongue Width (mm) | 14.7 |
| Overall Length (mm) | 32.8 |
| Sub Brand | Pan-Term® |
| Maximum Voltage (kV) | 0.6 |
| Tongue Width (In.) | 0.58 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-114) |
| Base Material | Copper |
| Overall Width (mm) | 14.7 |
| Minimum Wire Size (AWG) | #12 |
| Color Code | Yellow |
| Minimum Copper Conductor Size (AWG) | #12 |
| Wire Strip Length (In.) | 11,933 |
| Maximum Wire Insulation Diameter (mm) | 5.72 |
| Tongue Thickness (mm) | 1.02 |
| Overall Length (In.) | 1.29 |
| Barrel Type | Grip Sleeve |
| Finish/Coating | Tin-Plated |
| Maximum Wire Insulation Diameter (In.) | 0.225 |
| Maximum Operating Temperature (°C) | 105 |
| Flammability Rating | UL94-HB |
| Wire Strip Length (mm) | 7.1 |
| Overall Width (In.) | 0.58 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Voltage (V) | 600 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Stud Hole Size (mm) | 10 |
| Tongue Thickness (In.) | 0.04 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Maximum Wire Size (AWG) | #10 |
| Packaging Type | Bottle |
| Stud Hole Size (In.) | 3/8" |
| Minimum Metric Conductor Size (mm²) | 4 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Package Quantity | 50 |
