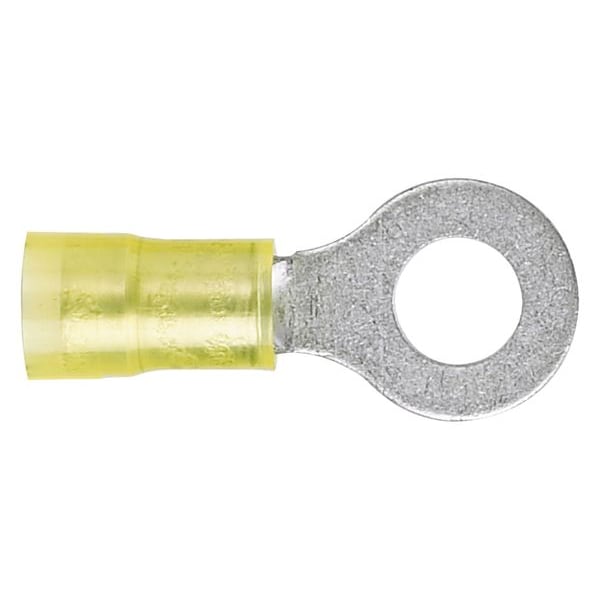

Terminal de anillo de nylon de 12-10 AWG con perno de 5/16" Paquete de 50
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | 5/16 in |
| Insulation Color | Yellow |
| Max. Voltage | 600 V |
| Max. Temp. | 221 deg F |
| Tongue Width - Wire Connector | 0.52 in |
| Green Environmental Attribute | Does Not Contain PVC |
| Seam | Grip Sleeved |
| Connection Type | Crimp |
| Item | Ring Terminal |
| Terminal Connection | Crimp |
| Overall Length | 1.21 in |
| Connection Material | Copper |
| Standards | CSA C22.2 No. 65, UL 486A, UL 486B |
| Features | Flame Retardant |
| Terminal Type | Ring Tongue |
| Width | 1/2 in |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Length | 1.2 in |
| Tongue Width | 0.52 in |
| UL 94 Flammability Rating | HB, V-2 |
| Special Features | Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications, Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| Barrel Length | 0.61 in |
| Termination Style | Crimp |
| Minimum Wire Size | 12 AWG |
| Maximum Wire Size | 10 AWG |
| Hole Diameter | 0.33 in |
| Strip Length | 1/4 in |
| Barrel Style | Insulation Grip |
| Tongue Thickness | 0.04 in |
| Contact Material | Copper |
| Insulation Material | Nylon |
| Maximum Operating Temperature | 221 deg F |
| Insulation Coverage | Partial Coverage |
| Contact Finish | Tin |
| Maximum Voltage | 600 V |
| Terminal Shape | Ring Terminal |
| Minimum Operating Temperature | 221 deg F |
| Tongue Length | 0.61 in |
| Seam Style | Grip Sleeved |
| Insulation Dia | 0.23 in |
| Product Color | Yellow |
| Connector Type | Ring Terminal |
| Product Material | Copper |
| Connector Plating | Tin |
| Product Type | Terminal Connector |
| Connector Details | 1 x (Ring Terminal) |
| Product Name | Terminal Connector |
| Environmentally Friendly | Yes |
| Tongue Thickness (In.) | 0.04 |
| CSA Temperature Rating (°C) | 105 |
| Barrel Type | Grip Sleeve |
| Barrel Length (In.) | 0.61 |
| Maximum Wire Insulation Diameter (In.) | 0.23 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Packaging Type | Bottle |
| Stud Hole Size (mm) | 8 |
| Overall Length (In.) | 1.21 |
| Maximum Operating Temperature (°F) | 221 |
| Minimum Wire Insulation Diameter (mm) | 3 |
| Barrel Length (mm) | 15.5 |
| Tongue Thickness (mm) | 1 |
| Flammability Rating | UL94V-2/UL94-HB |
| Color Code | Yellow |
| Base Material | Copper |
| Tongue Length (In.) | 0.61 |
| Stud Hole Size (In.) | 5/16" |
| Insulation Diameter (In.) | 0.23 |
| Overall Width (mm) | 13.2 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Minimum Wire Insulation Diameter (In.) | 0.12 |
| Overall Length (mm) | 30.7 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Insulation Diameter (mm) | 5.8 |
| Sub Brand | Pan-Term® |
| Maximum Operating Temperature (°C) | 105 |
| Wire Strip Length (In.) | 11,933 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-113) |
| Tongue Width (In.) | 0.52 |
| Maximum Wire Size (AWG) | #10 |
| Finish/Coating | Tin-Plated |
| Wire Strip Length (mm) | 7.1 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Insulation Diameter (mm) | 5.8 |
| Overall Width (In.) | 0.52 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Minimum Wire Size (AWG) | #14 |
| Tongue Width (mm) | 13.2 |
| Tongue Length (mm) | 15.5 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Operating Temperature (°C) | 105 |
| CSA Temperature Rating (°C) | 105 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Package Quantity | 50 |
