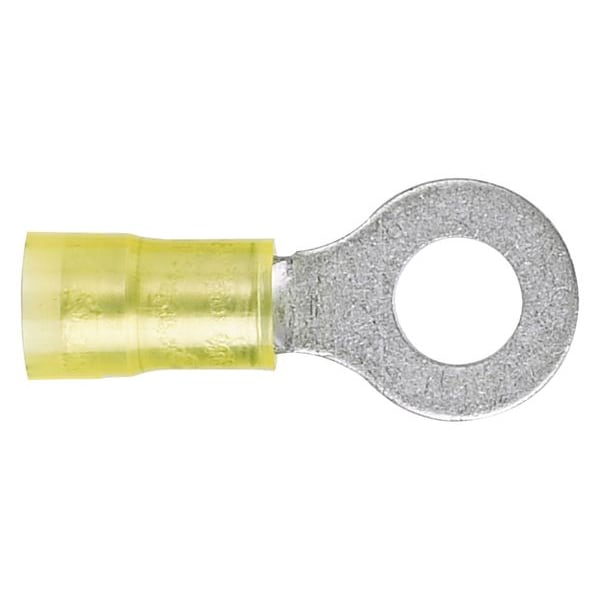

12-10 AWG Nylon Ring Terminal #6 Stud PK50
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #6 |
| Insulation Color | Yellow |
| Connection Material | Copper |
| Item | Ring Terminal |
| Green Environmental Attribute | Does Not Contain PVC |
| Tongue Width - Wire Connector | 0.37 in |
| Seam | Grip Sleeved |
| Max. Voltage | 600 V |
| Max. Temp. | 221 deg F |
| Terminal Connection | Crimp |
| Overall Length | 1.06 in |
| Standards | CSA C22.2 No. 65, UL 486A, UL 486B |
| Connection Type | Crimp |
| Features | Flame Retardant |
| Terminal Type | Ring Tongue |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Width | 0.4 in |
| Length | 1.1 in |
| UL 94 Flammability Rating | HB, V-2 |
| Minimum Operating Temperature | 221 deg F |
| Barrel Style | Insulation Grip |
| Termination Style | Crimp |
| Maximum Wire Size | 10 AWG |
| Minimum Wire Size | 12 AWG |
| Insulation Material | Nylon |
| Seam Style | Grip Sleeved |
| Special Features | Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications, Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| Contact Material | Copper |
| Strip Length | 1/4 in |
| Tongue Length | 0.53 in |
| Maximum Operating Temperature | 221 deg F |
| Hole Diameter | 0.16 in |
| Terminal Shape | Ring Terminal |
| Tongue Thickness | 0.04 in |
| Tongue Width | 0.37 in |
| Insulation Coverage | Partial Coverage |
| Barrel Length | 0.53 in |
| Maximum Voltage | 600 V |
| Contact Finish | Tin |
| Insulation Dia | 0.22 in |
| Product Material | Copper |
| Connector Type | Ring Terminal |
| Connector Plating | Tin |
| Connector Details | 1 x (Ring Terminal) |
| Product Color | Yellow |
| Environmentally Friendly | Yes |
| Product Type | Terminal Connector |
| Product Name | Terminal Connector |
| Flammability Rating | UL94V-2/UL94-HB |
| Maximum Wire Insulation Diameter (mm) | 5.8 |
| Minimum Wire Size (AWG) | #12 |
| Overall Length (mm) | 26.9 |
| Tongue Thickness (In.) | 0.04 |
| Insulation Diameter (mm) | 5.6 |
| Base Material | Copper |
| Maximum Copper Conductor Size (AWG) | #10 |
| Overall Width (mm) | 9.4 |
| Tongue Width (mm) | 9.4 |
| Tongue Length (mm) | 13.5 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Wire Insulation Diameter (In.) | 0.23 |
| Tongue Thickness (mm) | 1 |
| Finish/Coating | Tin-Plated |
| Maximum Operating Temperature (°F) | 221 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Maximum Operating Temperature (°C) | 105 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-111) |
| Sub Brand | Pan-Term® |
| Insulation Diameter (In.) | 0.22 |
| Barrel Length (In.) | 0.53 |
| Minimum Wire Insulation Diameter (In.) | 0.12 |
| Wire Strip Length (In.) | 11,933 |
| Barrel Length (mm) | 13.5 |
| Minimum Wire Insulation Diameter (mm) | 3 |
| Tongue Length (In.) | 0.53 |
| Packaging Type | Bottle |
| Maximum Voltage (V) | 600 |
| Overall Width (In.) | 0.37 |
| Tongue Width (In.) | 0.37 |
| Color Code | Yellow |
| Maximum Metric Conductor Size (mm²) | 6 |
| Stud Hole Size (In.) | #6 |
| Barrel Type | Grip Sleeve |
| Overall Length (In.) | 1.06 |
| Maximum Wire Size (AWG) | #10 |
| Maximum Voltage (kV) | 0.6 |
| Wire Strip Length (mm) | 7.1 |
| Stud Hole Size (mm) | 3.5 |
| Maximum Operating Temperature (°C) | 105 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Maximum Operating Temperature (°F) | 221 |
| Package Quantity | 50 |
