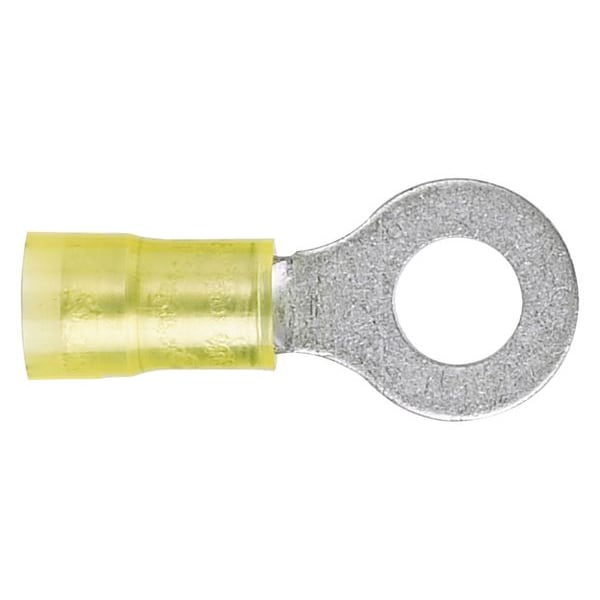

Terminal de anillo de nylon de calibre 12-10, para tornillo #8. Paquete con 50 piezas.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #8 |
| Insulation Color | Yellow |
| Seam | Grip Sleeved |
| Item | Ring Terminal |
| Connection Material | Copper |
| Connection Type | Crimp |
| Terminal Connection | Crimp |
| Max. Temp. | 221 deg F |
| Overall Length | 1.06 in |
| Green Environmental Attribute | Does Not Contain PVC |
| Tongue Width - Wire Connector | 0.37 in |
| Max. Voltage | 600 V |
| Standards | CSA C22.2 No. 65, UL 486A, UL 486B |
| Features | Flame Retardant |
| Terminal Type | Ring Tongue |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Width | 0.4 in |
| Length | 1.1 in |
| Termination Style | Crimp |
| Insulation Material | Nylon |
| Minimum Wire Size | 12 AWG |
| Compatible Manufacturer Model Number | CT-100, CT-1550, CT-1551, CT-2300/ST, CT-2500/L, UP14ZLW |
| Tongue Thickness | 0.04 in |
| Minimum Operating Temperature | 221 deg F |
| Strip Length | 1/4 in |
| Seam Style | Grip Sleeved |
| Insulation Coverage | Partial Coverage |
| Special Features | Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications, Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| Maximum Operating Temperature | 221 deg F |
| Contact Material | Copper |
| Maximum Voltage | 600 V |
| Hole Diameter | 0.17 in |
| Contact Finish | Tin |
| UL 94 Flammability Rating | HB |
| Tongue Width | 0.37 in |
| Maximum Wire Size | 10 AWG |
| Barrel Style | Insulation Grip |
| Terminal Shape | Ring Terminal |
| Insulation Dia | 0.225 in |
| Product Material | Copper |
| Product Type | Terminal Connector |
| Connector Details | 1 x (Ring Terminal) |
| Product Name | Terminal Connector |
| Product Color | Yellow |
| Environmentally Friendly | Yes |
| Connector Plating | Tin |
| Connector Type | Ring Terminal |
| Minimum Copper Conductor Size (AWG) | #12 |
| Color Code | Yellow |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-156) |
| Maximum Metric Conductor Size (mm²) | 6 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Voltage (kV) | 0.6 |
| Overall Width (mm) | 9.4 |
| Barrel Type | Grip Sleeve |
| Overall Length (In.) | 1.06 |
| Tongue Thickness (In.) | 0.04 |
| Flammability Rating | UL94-HB |
| Base Material | Copper |
| Maximum Copper Conductor Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Tongue Width (mm) | 9.4 |
| Stud Hole Size (In.) | #8 |
| Wire Strip Length (In.) | 11,933 |
| Packaging Type | Bottle |
| Tongue Thickness (mm) | 1.02 |
| Stud Hole Size (mm) | 4 |
| Maximum Voltage (V) | 600 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Tongue Width (In.) | 0.37 |
| Finish/Coating | Tin-Plated |
| Wire Strip Length (mm) | 7.1 |
| Overall Width (In.) | 0.37 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Pan-Term® |
| Maximum Wire Insulation Diameter (In.) | 0.225 |
| Maximum Wire Size (AWG) | #10 |
| Maximum Wire Insulation Diameter (mm) | 5.72 |
| Overall Length (mm) | 26.9 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Operating Temperature (°C) | 105 |
| Package Quantity | 50 |
