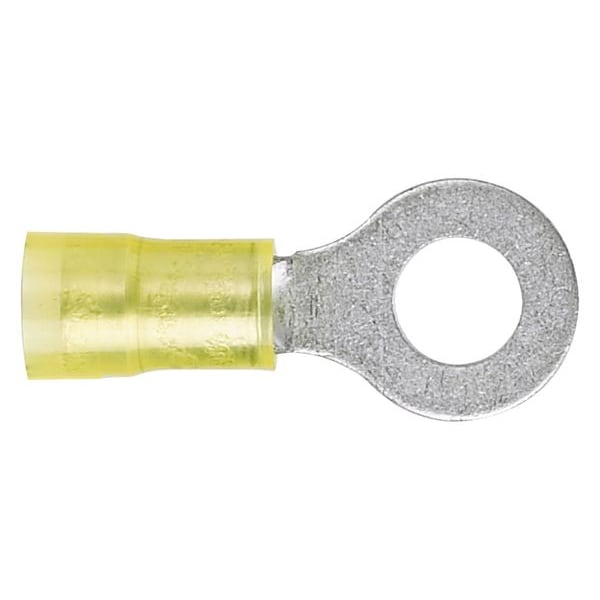

12-10 AWG Nylon Ring Terminal #8 Stud PK500
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #8 |
| Insulation Color | Yellow |
| Max. Temp. | 221 deg F |
| Terminal Connection | Crimp |
| Connection Material | Copper |
| Green Environmental Attribute | Does Not Contain PVC |
| Seam | Grip Sleeved |
| Max. Voltage | 600 V |
| Connection Type | Crimp |
| Tongue Width - Wire Connector | 0.37 in |
| Standards | CSA C22.2 No. 65, UL 486A, UL 486B |
| Item | Ring Terminal |
| Overall Length | 1.06 in |
| Terminal Type | Ring Tongue |
| Features | Flame Retardant |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Width | 0.4 in |
| Length | 1.1 in |
| Special Features | Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications, Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| Seam Style | Grip Sleeved |
| Contact Finish | Tin |
| UL 94 Flammability Rating | HB |
| Barrel Style | Insulation Grip |
| Tongue Width | 0.37 in |
| Tongue Thickness | 0.04 in |
| Strip Length | 1/4 in |
| Maximum Voltage | 600 V |
| Insulation Coverage | Partial Coverage |
| Insulation Material | Nylon |
| Maximum Operating Temperature | 221 deg F |
| Minimum Wire Size | 12 AWG |
| Termination Style | Crimp |
| Hole Diameter | 0.17 in |
| Maximum Wire Size | 10 AWG |
| Terminal Shape | Ring Terminal |
| Contact Material | Copper |
| Compatible Manufacturer Model Number | CT-100, CT-1550, CT-1551, CT-2300/ST, CT-2500/L, UP14ZLW |
| Minimum Operating Temperature | 221 deg F |
| Insulation Dia | 0.225 in |
| Connector Plating | Tin |
| Environmentally Friendly | Yes |
| Product Color | Yellow |
| Product Type | Terminal Connector |
| Connector Type | Ring Terminal |
| Connector Details | 1 x (Ring Terminal) |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Package Type | Bulk |
| Maximum Voltage (V) | 600 |
| Flammability Rating | UL94-HB |
| Maximum Wire Insulation Diameter (In.) | 0.225 |
| Overall Length (mm) | 26.9 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Stud Hole Size (mm) | 4 |
| Maximum Wire Size (AWG) | #10 |
| Overall Length (In.) | 1.06 |
| Barrel Type | Grip Sleeve |
| Wire Strip Length (mm) | 7.1 |
| Tongue Thickness (In.) | 0.04 |
| Overall Width (In.) | 0.37 |
| Stud Hole Size (In.) | #8 |
| Maximum Operating Temperature (°C) | 105 |
| Finish/Coating | Tin-Plated |
| Minimum Copper Conductor Size (AWG) | #12 |
| Tongue Width (mm) | 9.4 |
| Overall Width (mm) | 9.4 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-156) |
| Maximum Operating Temperature (°F) | 221 |
| Minimum Wire Size (AWG) | #12 |
| Sub Brand | Pan-Term® |
| Maximum Wire Insulation Diameter (mm) | 5.72 |
| Maximum Voltage (kV) | 0.6 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Packaging Type | Box |
| Color Code | Yellow |
| Base Material | Copper |
| Tongue Width (In.) | 0.37 |
| Wire Strip Length (In.) | 11,933 |
| Tongue Thickness (mm) | 1.02 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Package Quantity | 500 |
