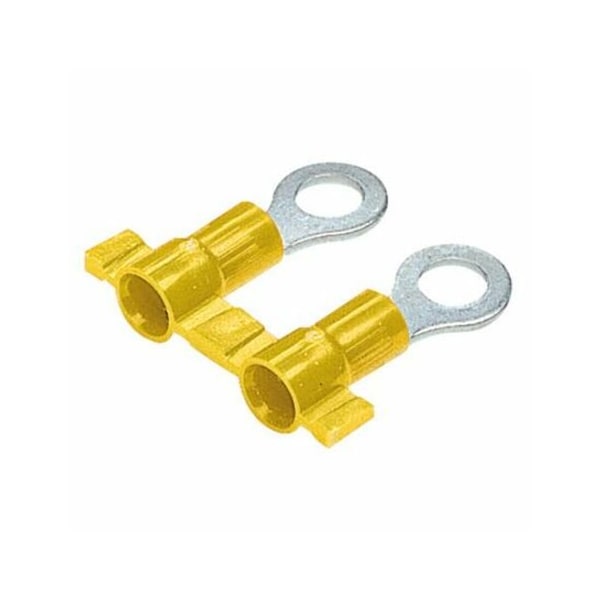

Terminal de anillo de vinilo de calibre 12-10 con perno de tamaño #10, paquete de 2000 unidades.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #10 |
| Insulation Color | Yellow |
| Item | Ring Terminal |
| Max. Temp. | 221 deg F |
| Terminal Type | Ring Tongue |
| Connection Material | Copper |
| Features | Molded, Flame Retardant |
| Overall Length | 1.02 in |
| Max. Voltage | 600 V |
| Seam | Funnel |
| Standards | cULus Listed 587H E52164, CSA Certified LR31212 |
| Finish | Tinned |
| Length | 1 in |
| Width | 0.3 in |
| Tongue Width - Wire Connector | 0.31 in |
| Insulation Dia | 0.23 in |
| Product Material | Copper |
| Product Type | Terminal Connector |
| Insulation Material | Vinyl, Metal, Plastic |
| Product Name | Terminal Connector |
| Product Color | Yellow |
| Connector Plating | Tin |
| Connector Details | 1 x (Ring Terminal) |
| Color Coding | Yellow |
| Barrel Type | Insulation Support |
| Product Class | Ring Terminals |
| Max Operating Temperature | 105 degrees celsius |
| Package Quantity | 2000 |
