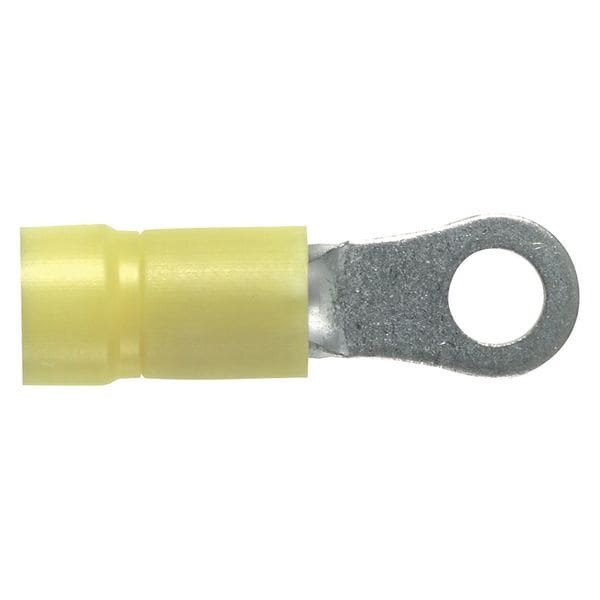

12-10 AWG Vinyl Ring Terminal 1/2" Stud PK25
| Wire Range | 12 AWG to 10 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | 1/2 in |
| Insulation Color | Yellow |
| Tongue Width - Wire Connector | 0.72 in |
| Seam | Brazed |
| Max. Temp. | 221 deg F |
| Connection Material | Copper |
| Standards | CSA C22.2 No. 65, UL486A-486B |
| Item | Ring Terminal |
| Max. Voltage | 600 V |
| Overall Length | 1.46 in |
| Maximum Voltage | 600 V |
| Contact Material | Copper |
| Seam Style | Brazed |
| Minimum Wire Size | 12 AWG |
| Maximum Wire Size | 10 AWG |
| Tongue Width | 0.72 in |
| Package Quantity | 25 |
