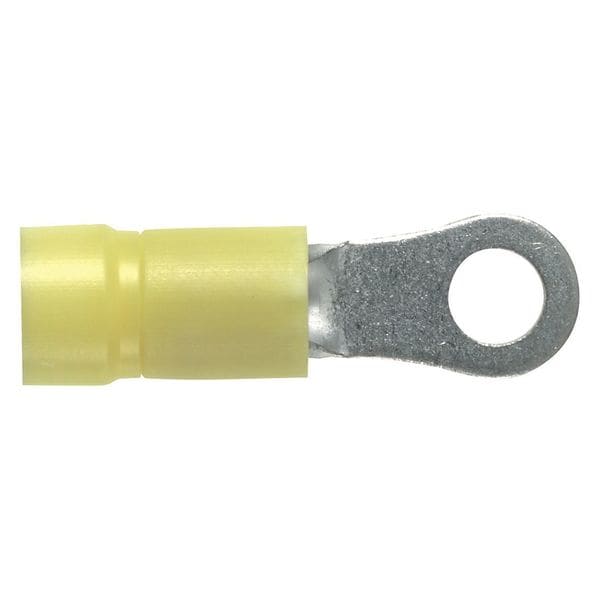

Terminal de anillo de vinil de calibre 12-10, con espárrago de 1/4", paquete de 50 unidades.
| Wire Range | 12 AWG to 10 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | 1/4 in |
| Insulation Color | Yellow |
| Overall Length | 1.23 in |
| Connection Material | Copper |
| Item | Ring Terminal |
| Max. Temp. | 221 deg F |
| Tongue Width - Wire Connector | 0.38 in |
| Max. Voltage | 600 V |
| Standards | CSA C22.2 No. 65, UL486A-486B |
| Seam | Brazed |
| Terminal Type | Ring Tongue |
| Features | Funnel Entry |
| Width | 1/2 in |
| Length | 1.2 in |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Maximum Voltage | 600 V |
| Insulation Dia | 0.23 in |
| Connector Details | 1 x (Ring Terminal) |
| Product Name | Terminal Connector |
| Connector Type | Ring Terminal |
| Product Material | Copper |
| Environmentally Friendly | Yes |
| Product Color | Yellow |
| Product Type | Terminal Connector |
| Connector Plating | Tin |
| Insulation Material | Vinyl |
| Stud Hole Size (In.) | 1/4" |
| Overall Width (In.) | 0.52 |
| Stud Hole Size (mm) | 6 |
| Overall Length (In.) | 1.23 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212 |
| Maximum Operating Temperature (°F) | 221 |
| Finish/Coating | Tin-Plated |
| Flammability Rating | UL94V-0 |
| Tongue Width (mm) | 13.2 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Maximum Wire Insulation Diameter (mm) | 5.8 |
| Maximum Wire Size (AWG) | #10 |
| Packaging Type | Bottle |
| Tongue Width (In.) | 0.52 |
| Wire Strip Length (mm) | 7.9 |
| Minimum Wire Size (AWG) | #12 |
| Maximum Voltage (V) | 600 |
| Color Code | Yellow |
| Tongue Thickness (mm) | 1 |
| Sub Brand | Pan-Term® |
| Overall Width (mm) | 13.2 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Barrel Type | Funnel |
| Overall Length (mm) | 31.2 |
| Base Material | Copper |
| Tongue Thickness (In.) | 0.04 |
| Wire Strip Length (In.) | 45,062 |
| Maximum Wire Insulation Diameter (In.) | 0.23 |
| Maximum Voltage (kV) | 0.6 |
| Seam Type | Brazed |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Seam Style | Brazed |
| Minimum Wire Size | 12 AWG |
| Maximum Wire Size | 10 AWG |
| Tongue Width | 0.38 in |
| Contact Material | Copper |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Maximum Operating Temperature (°C) | 105 |
| Package Quantity | 50 |
