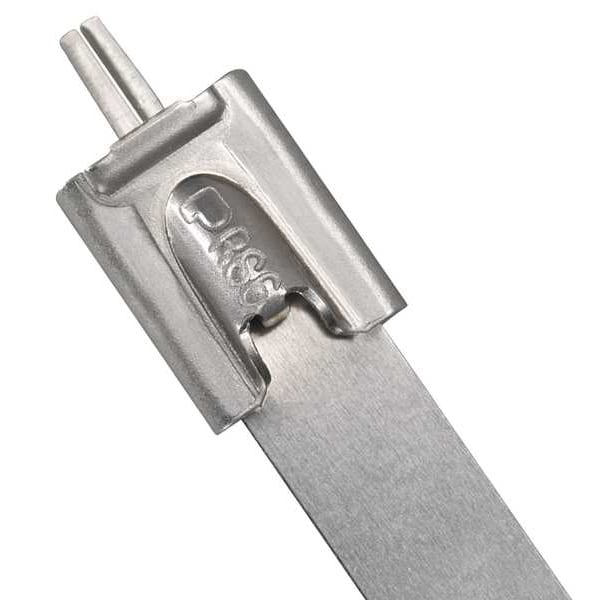

12.2" L Extra Heavy Duty Cable Tie PK 100
| Item | Cable Tie |
|---|---|
| Length | 12.2" |
| Width | 0.18 in |
| Max. Bundle Dia. | 2 in |
| Color | Silver |
| Material | 304 Stainless steel |
| Tensile Strength | 180 lb |
| Indoor/Outdoor | Indoor, Outdoor |
| Design - Cable Tie | Standard |
| Resists | Chemical, Radiation, UV, High Temperatures |
| Cable Tie Duty | Extra Heavy Duty |
| Color - Cable Tie | Silver |
| Standards | UL 62275 (Type 2, 21), CSA, CE, RoHS |
| UL Type | Not Listed |
| Length - Cable Tie | 12.2 in |
| Design | Standard |
| Temp. Range | -76 to 1,000 deg F |
| Locking Style | Ball Lock |
| Tensile Strength - Cable Tie | 180 lb |
| Approximate Length - Cable Tie | 12 in |
| Basic Material - Cable Tie | Metal |
| Thickness | 0.01 in |
| Basic Material | Metal |
| Width - Cable Tie | 0.18" |
| Tool Code | I |
| Approximate Length | 12 in |
| Metal Detectable | Yes |
| Application | General Purpose |
| Flame Retardant | No |
| Cable Tie Style | Standard |
| Number of Straps | 1 |
| Cable Tie Properties | Radiation Resistant, UV Light Resistant, Weather Resistant |
| Recommended Tool | 2CMV1 |
| Actual Length | 12.2 in |
| Min. Temp. Rating | -76 deg F |
| Max. Temp. Rating | 1,000 deg F |
| Outdoor Use | Yes |
| Nominal Max. Bundle Dia. | 2 in |
| Plenum Rated | No |
| Nominal Length | 12-1/2 in |
| Body Width (In.) | 0.18 |
| Overall Length (mm) | 310 |
| Body Width (mm) | 4.4 |
| Maximum Bundle Diameter (mm) | 203.2 |
| Maximum Operating Temperature (°C) | 538 |
| Body Thickness (In.) | 0.01 |
| Environment | Indoor, Outdoor |
| Overall Length (In.) | 12.2 |
| Product Type | Stainless Steel Cable Ties |
| Minimum Loop Tensile Strength (N) | 800 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Bundle Diameter (mm) | 19.1 |
| Minimum Bundle Diameter (In.) | 0.75 |
| For Use With | MTRTLS & PTRT |
| Maximum Operating Temperature (°F) | 1,000 |
| Resistance Properties | UV Resistant |
| Minimum Loop Tensile Strength (lb) | 180 |
| Minimum Operating Temperature (°F) | -76 |
| Sub Brand | Pan-Steel® |
| Body Thickness (mm) | 0.3 |
| Minimum Installation Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -60 |
| Maximum Bundle Diameter (In.) | 8 |
| Maximum Operating Temperature (°F) | 1,000 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -60 |
| Maximum Operating Temperature (°C) | 538 |
| Minimum Operating Temperature (°C) | -60 |
| Package Quantity | 100 |
