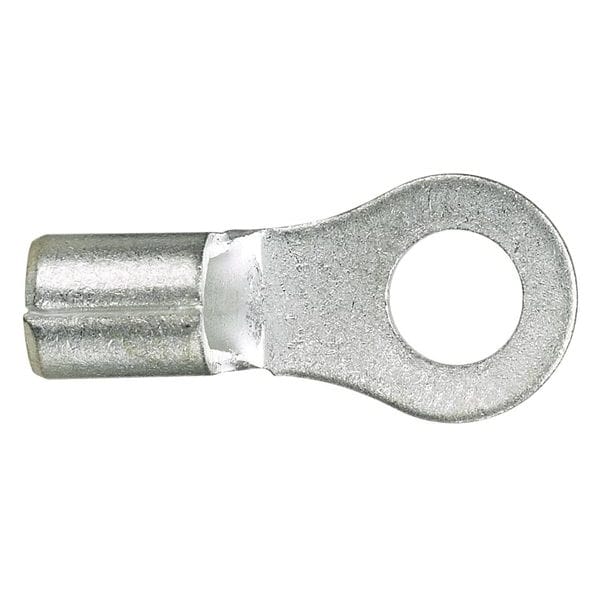

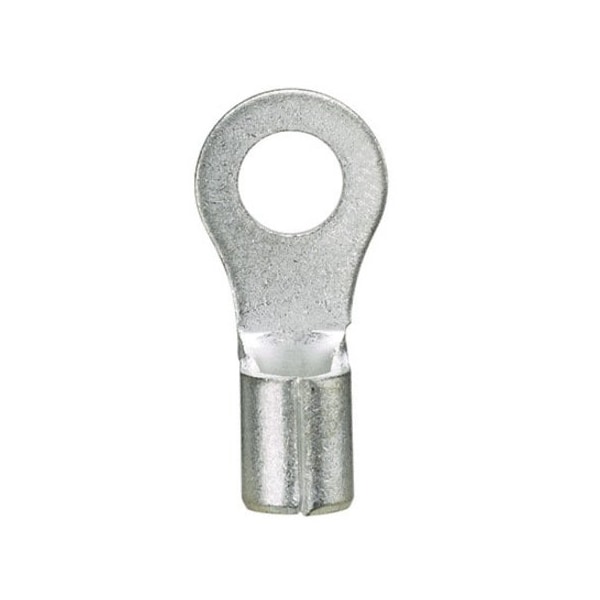

Terminal de anillo sin aislante de 14-10 AWG, 3/8" de diámetro de tornillo, paquete de 500 unidades.
| Wire Range | 14 to 10 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | 3/8 in |
| Insulation Color | Bare |
| Max. Temp. | 302 deg F |
| Max. Voltage | 2,000 V |
| Item | Ring Terminal |
| Terminal Connection | Crimp |
| Green Environmental Attribute | Does Not Contain PVC |
| Seam | Brazed |
| Connection Material | Copper |
| Connection Type | Crimp |
| Tongue Width - Wire Connector | 0.58 in |
| Standards | CSA Certified LR31212, UL Listed 587H E52164 |
| Overall Length | 1.05 in |
| Maximum Wire Size | 10 AWG |
| Seam Style | Brazed |
| Insulation Coverage | None |
| Termination Style | Crimp |
| Strip Length | 1/4 in |
| Minimum Operating Temperature | 302 deg F |
| Contact Material | Copper |
| Minimum Wire Size | 14 AWG |
| Special Features | Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| Tongue Length | 0.15 in |
| Barrel Inside Diameter | 0.13 in |
| Compatible Manufacturer Model Number | CT-100A, CT-1570, CT-160, CT-1701, CT-200, CT-2500, CT-260, CT-600-A |
| Tongue Width | 0.58 in |
| Maximum Operating Temperature | 302 deg F |
| Terminal Shape | Ring Terminal |
| Hole Diameter | 0.39 in |
| Barrel Style | Serrated Barrel |
| Barrel Length | 0.33 in |
| Barrel Outside Diameter | 0.58 in |
| Tongue Thickness | 0.04 in |
| Maximum Voltage | 2,000 V |
| Insulation Material | None |
| Contact Finish | Tin |
| Package Quantity | 500 |
