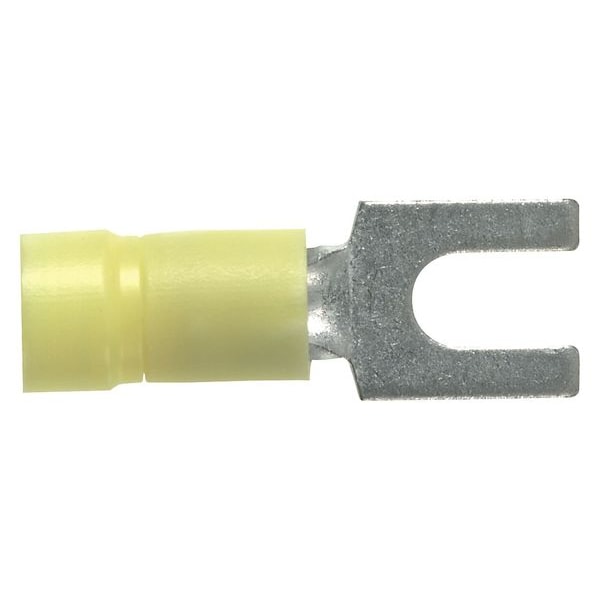

Terminal de horquilla de vinilo de calibre 14-10 con tornillo #10, paquete de 50 unidades.
| Wire Range | 14 to 10 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #10 |
| Insulation Color | Yellow |
| Connection Type | Crimp |
| Terminal Type | Standard |
| Terminal Connection | Crimp |
| Seam | Brazed |
| Max. Voltage | 600 V |
| Item | Fork Terminal |
| Connection Material | Copper |
| Overall Length | 1.04 in |
| Standards | American Bureau of Shipping (ABS), CSA22.2 No. 65, UL 486A - 486B |
| Max. Temp. | 221 deg F |
| Features | Brazed Seam Protects Terminal Barrel From Splitting During Crimping Process, Fork Design Provides for Fast and Easy Installation, Insulation Support, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength |
| Tongue Width - Wire Connector | 0.37 in |
| Material | Copper, Vinyl |
| Width | 0.4 in |
| Length | 1 in |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Maximum Voltage | 600 V |
| Tongue Width | 0.37 in |
| Insulation Dia | 0.225 in |
| Connector Details | 1 x (Fork Terminal) |
| Product Type | Terminal Connector |
| Product Material | Vinyl |
| Connector Plating | Tin |
| Environmentally Friendly | Yes |
| Diameter | 0.2" |
| Insulation Material | Vinyl |
| Product Color | Yellow |
| Connector Type | Fork Terminal |
| Product Name | Terminal Connector |
| Wire Strip Length (In.) | 45,062 |
| Maximum Voltage (kV) | 0.6 |
| Overall Length (mm) | 26.42 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Copper Conductor Size (AWG SOL) | #14 |
| Tongue Width (mm) | 9.4 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Wire Strip Length (mm) | 7.9 |
| Stud Hole Size (In.) | #10 |
| Finish/Coating | Tin-Plated |
| Overall Width (In.) | 0.37 |
| Minimum Wire Size (AWG) | #14 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Voltage (V) | 600 |
| Maximum Wire Insulation Diameter (mm) | 5.72 |
| Maximum Wire Insulation Diameter (In.) | 0.225 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Flammability Rating | UL94V-0 |
| Minimum Copper Conductor Size (AWG) | #14 |
| Seam Type | Brazed |
| Packaging Type | Bottle |
| Tongue Thickness (In.) | 0.04 |
| Tongue Thickness (mm) | 1.02 |
| Stud Hole Size (mm) | 5 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Barrel Type | Funnel |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Minimum Copper Conductor Size (AWG STR) | #14 |
| Overall Width (mm) | 9.4 |
| Maximum Operating Temperature (°C) | 105 |
| Color Code | Yellow |
| Sub Brand | Pan-Term® |
| Fork Type | Standard |
| Minimum Metric Conductor Size (mm²) | 2.5 |
| Base Material | Copper |
| Tongue Width (In.) | 0.37 |
| Overall Length (In.) | 1.04 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Size | 10 AWG |
| Seam Style | Brazed |
| Special Features | Brazed Seam Protects Terminal Barrel From Splitting During Crimping Process, Fork Design Provides for Fast and Easy Installation, Insulation Support, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength |
| Minimum Wire Size | 14 AWG |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 2.5 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Operating Temperature (°C) | 105 |
| Package Quantity | 50 |
