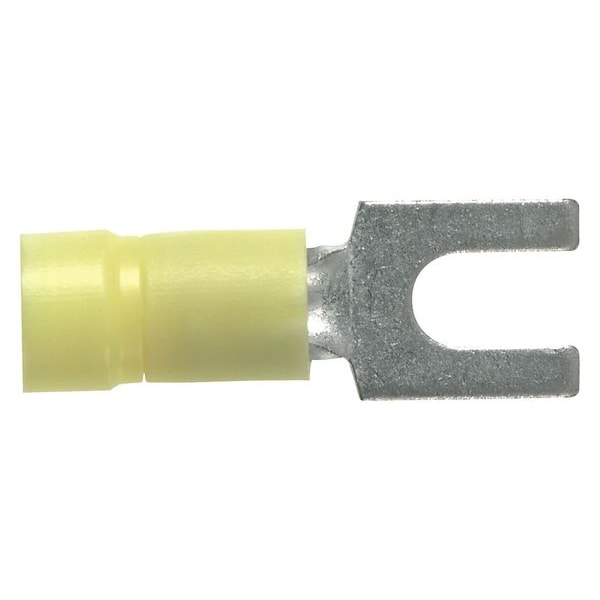

14-10 AWG Vinyl Fork Terminal #10 Stud PK500
| Wire Range | 14 to 10 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #10 |
| Insulation Color | Yellow |
| Connection Type | Crimp |
| Terminal Connection | Crimp |
| Connection Material | Copper |
| Max. Temp. | 221 deg F |
| Item | Fork Terminal |
| Tongue Width - Wire Connector | 0.37 in |
| Standards | American Bureau of Shipping (ABS), CSA22.2 No. 65, UL 486A - 486B |
| Terminal Type | Standard |
| Max. Voltage | 600 V |
| Seam | Brazed |
| Features | Brazed Seam Protects Terminal Barrel From Splitting During Crimping Process, Fork Design Provides for Fast and Easy Installation, Insulation Support, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength |
| Overall Length | 1.04 in |
| Material | Copper, Vinyl |
| Maximum Voltage | 600 V |
| Tongue Width | 0.37 in |
| Minimum Wire Size | 14 AWG |
| Maximum Wire Size | 10 AWG |
| Special Features | Brazed Seam Protects Terminal Barrel From Splitting During Crimping Process, Fork Design Provides for Fast and Easy Installation, Insulation Support, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength |
| Seam Style | Brazed |
| Package Quantity | 500 |
