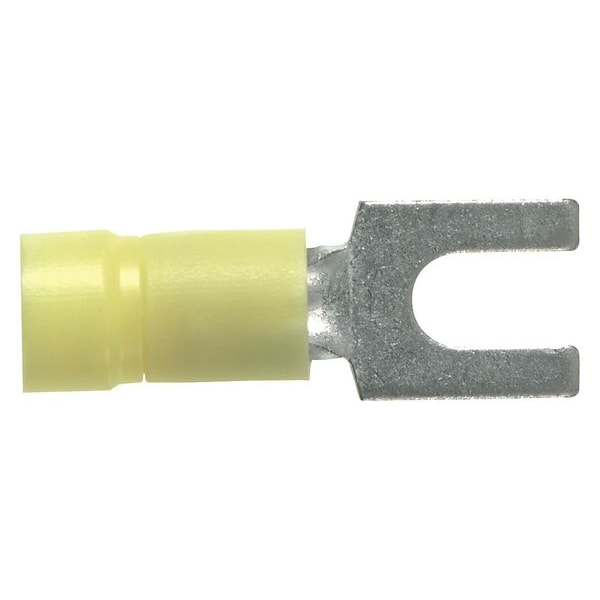

Terminal de horquilla de vinil de calibre 14-10, con perno de 1/4 de pulgada, paquete con 50 piezas.
| Wire Range | 14 to 10 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | 1/4 in |
| Insulation Color | Yellow |
| Connection Type | Crimp |
| Terminal Connection | Crimp |
| Max. Voltage | 600 V |
| Terminal Type | Standard |
| Overall Length | 1.14 in |
| Connection Material | Copper |
| Item | Fork Terminal |
| Tongue Width - Wire Connector | 0.49 in |
| Seam | Brazed |
| Standards | American Bureau of Shipping (ABS), CSA22.2 No. 65, UL 486A - 486B |
| Max. Temp. | 221 deg F |
| Features | Brazed Seam Protects Terminal Barrel From Splitting During Crimping Process, Fork Design Provides for Fast and Easy Installation, Insulation Support, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength |
| Material | Copper, Vinyl |
| Tongue Width | 0.49 in |
| Maximum Voltage | 600 V |
| Special Features | Brazed Seam Protects Terminal Barrel From Splitting During Crimping Process, Fork Design Provides for Fast and Easy Installation, Insulation Support, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength |
| Maximum Wire Size | 10 AWG |
| Minimum Wire Size | 14 AWG |
| Seam Style | Brazed |
| Package Quantity | 50 |
