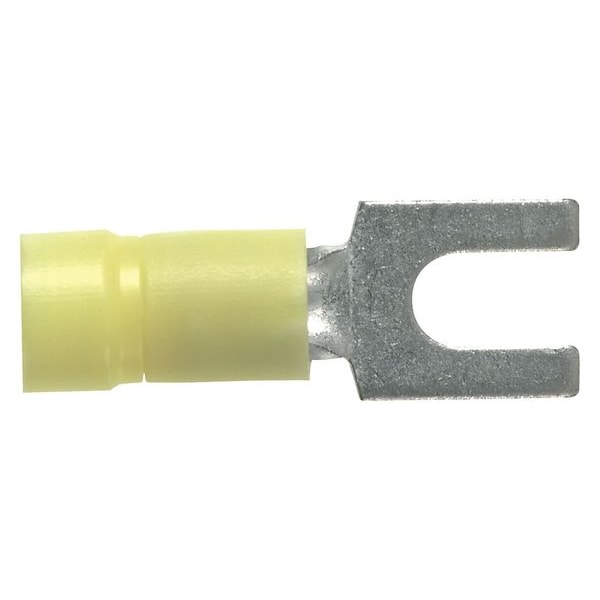

Terminal de horquilla de vinil calibre 14-10 para tornillo #6, paquete de 50 piezas.
| Wire Range | 14 to 10 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #6 |
| Insulation Color | Yellow |
| Overall Length | 1.01 in |
| Item | Fork Terminal |
| Terminal Connection | Crimp |
| Standards | American Bureau of Shipping (ABS), CSA22.2 No. 65, UL 486A - 486B |
| Connection Material | Copper |
| Connection Type | Crimp |
| Tongue Width - Wire Connector | 0.31 in |
| Max. Temp. | 221 deg F |
| Max. Voltage | 600 V |
| Terminal Type | Standard |
| Seam | Brazed |
| Features | Brazed Seam Protects Terminal Barrel From Splitting During Crimping Process, Fork Design Provides for Fast and Easy Installation, Insulation Support, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength |
| Material | Copper, Vinyl |
| Maximum Voltage | 600 V |
| Tongue Width | 0.31 in |
| Seam Style | Brazed |
| Maximum Wire Size | 10 AWG |
| Special Features | Brazed Seam Protects Terminal Barrel From Splitting During Crimping Process, Fork Design Provides for Fast and Easy Installation, Insulation Support, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength |
| Minimum Wire Size | 14 AWG |
| Package Quantity | 50 |
