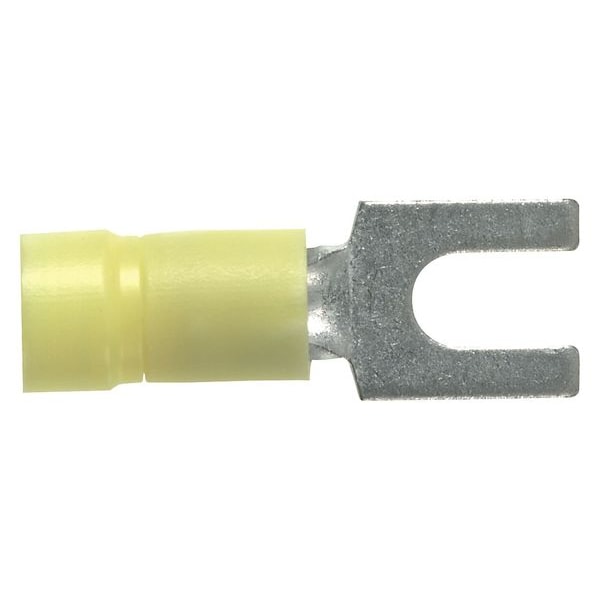

14-10 AWG Vinyl Fork Terminal #8 Stud PK50
| Wire Range | 14 to 10 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #8 |
| Insulation Color | Yellow |
| Max. Temp. | 221 deg F |
| Tongue Width - Wire Connector | 0.37 in |
| Max. Voltage | 600 V |
| Terminal Connection | Crimp |
| Connection Material | Copper |
| Overall Length | 1.04 in |
| Terminal Type | Standard |
| Standards | American Bureau of Shipping (ABS), CSA22.2 No. 65, UL 486A - 486B |
| Features | Brazed Seam Protects Terminal Barrel From Splitting During Crimping Process, Fork Design Provides for Fast and Easy Installation, Insulation Support, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength |
| Item | Fork Terminal |
| Connection Type | Crimp |
| Seam | Brazed |
| Length | 1 in |
| Width | 0.4 in |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Maximum Voltage | 600 V |
| Tongue Width | 0.37 in |
| Insulation Dia | 0.225 in |
| Product Name | Terminal Connector |
| Environmentally Friendly | Yes |
| Product Color | Yellow |
| Connector Details | 1 x (Fork Terminal) |
| Product Type | Terminal Connector |
| Product Material | Copper, Vinyl |
| Connector Type | Fork Terminal |
| Insulation Material | Vinyl |
| Connector Plating | Tin |
| Diameter | 0.2" |
| Minimum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Insulation Diameter (In.) | 0.225 |
| Wire Strip Length (mm) | 7.9 |
| Maximum Operating Temperature (°C) | 105 |
| Color Code | Yellow |
| Overall Length (In.) | 1.04 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Copper Conductor Size (AWG STR) | #14 |
| Flammability Rating | UL94V-0 |
| Stud Hole Size (In.) | #8 |
| Overall Width (In.) | 0.37 |
| Minimum Wire Size (AWG) | #14 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Tongue Thickness (In.) | 0.04 |
| Tongue Thickness (mm) | 1 |
| Minimum Copper Conductor Size (AWG SOL) | #14 |
| Tongue Length (mm) | 13.2 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Finish/Coating | Tin-Plated |
| Minimum Metric Conductor Size (mm²) | 2.5 |
| Maximum Voltage (V) | 600 |
| Fork Type | Standard |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Wire Strip Length (In.) | 45,062 |
| Seam Type | Brazed |
| Tongue Width (In.) | 0.37 |
| Sub Brand | Pan-Term® |
| Packaging Type | Bottle |
| Barrel Length (In.) | 0.52 |
| Barrel Type | Funnel |
| Tongue Length (In.) | 0.52 |
| Maximum Operating Temperature (°F) | 221 |
| Tongue Width (mm) | 9.4 |
| Barrel Length (mm) | 13.2 |
| Maximum Wire Insulation Diameter (mm) | 5.72 |
| Maximum Voltage (kV) | 0.6 |
| Stud Hole Size (mm) | 4 |
| Overall Length (mm) | 26.42 |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Overall Width (mm) | 9.4 |
| Base Material | Copper |
| Maximum Wire Size | 10 AWG |
| Special Features | Brazed Seam Protects Terminal Barrel From Splitting During Crimping Process, Fork Design Provides for Fast and Easy Installation, Insulation Support, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength |
| Seam Style | Brazed |
| Minimum Wire Size | 14 AWG |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 2.5 |
| Maximum Operating Temperature (°F) | 221 |
| Package Quantity | 50 |
