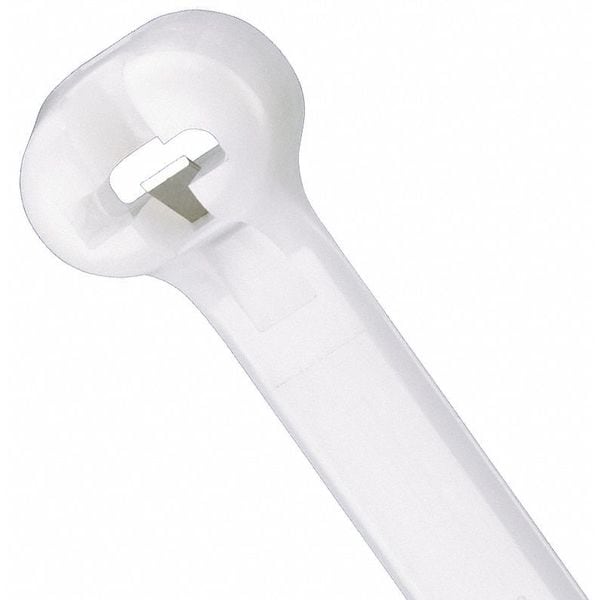

14.2" L Miniature Cable Tie NAT PK 1000
| Item | Cable Tie |
|---|---|
| Length | 14.2" |
| Width | 0.09 in |
| Max. Bundle Dia. | 4 in |
| Color | natural |
| Material | Nylon 6/6 |
| Tensile Strength | 18 lb |
| Indoor/Outdoor | Indoor |
| UL Type | 2 |
| Color - Cable Tie | Natural |
| Temp. Range | -76 to 185 deg F |
| Tensile Strength - Cable Tie | 18 lb |
| Approximate Length - Cable Tie | 14 in |
| Metal Detectable | No |
| Basic Material - Cable Tie | Nylon |
| Basic Material | Nylon |
| Length - Cable Tie | 14.2 in |
| Approximate Length | 14 in |
| Locking Style | Stainless Steel Barb |
| Design | Standard |
| Cable Tie Duty | Miniature |
| Standards | UL 62275 (Type 2, 21), CSA, CE, RoHS, Plenum AH-2 |
| Design - Cable Tie | Standard |
| Width - Cable Tie | 0.09" |
| Tool Code | E |
| Thickness | 0.04 in |
| Flame Retardant | No |
| Application | General Purpose |
| Cable Tie Style | Standard |
| Nominal Max. Bundle Dia. | 4 in |
| Actual Length | 14.2 in |
| Plenum Rated | Yes |
| Min. Temp. Rating | -76 deg F |
| Number of Straps | 1 |
| Cable Tie Properties | Halogen-Free, Low-Smoke, Plenum Rated |
| Nominal Length | 14-1/2 in |
| Outdoor Use | No |
| Recommended Tool | 376V35, 52ZJ96, 62PX63 |
| Max. Temp. Rating | 185 deg F |
| Product Line | Dome-Top Barb Ty |
| Product Name | Dome-Top Barb Ty Cable Tie |
| Cable Manager Type | Cable Tie |
| Depth | 14.2 in |
| Product Type | Cable Tying |
| Product Material | Nylon |
| Product Color | Natural |
| Minimum Installation Temperature (°C) | -20 |
| Standards Met | UL 62275 (File E56854), CSA-C22.2 No. 62275 (File 31212), Cert 05968/C0, BV File ACE 14/601/01 Product Code: 2535H, 89/60111 (E3), 11130200, QPL-AS23190, RoHS Compliant |
| Minimum Bundle Diameter (In.) | 0.06 |
| Maximum Operating Temperature (°C) | 85 |
| Sub Brand | Dome-Top® |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°F) | -4 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Minimum Operating Temperature (°C) | -60 |
| Body Width (In.) | 0.095 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Bundle Diameter (mm) | 1.5 |
| For Use With | GTS-E, GS2B-E, STS2 |
| Overall Length (In.) | 14.2 |
| Body Width (mm) | 2.4 |
| Overall Length (mm) | 361 |
| Body Thickness (In.) | 0.046 |
| Environment | Plenum |
| Maximum Bundle Diameter (In.) | 4 |
| Maximum Operating Temperature (°F) | 185 |
| Maximum Bundle Diameter (mm) | 101.6 |
| Body Thickness (mm) | 1.2 |
| Package Quantity | 1000 |
