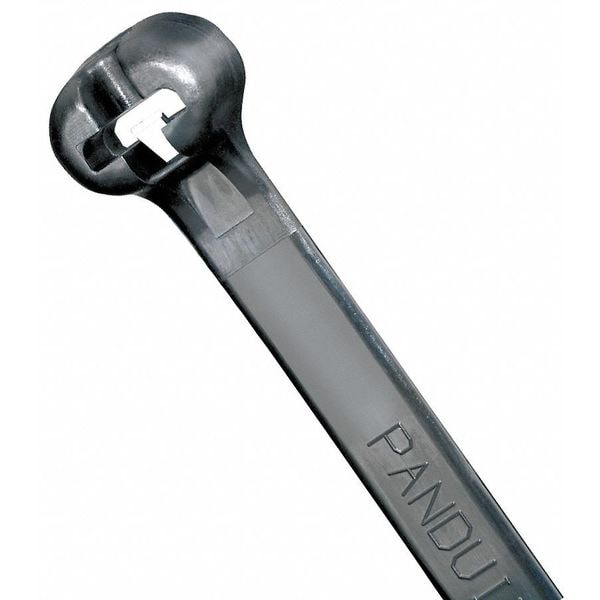

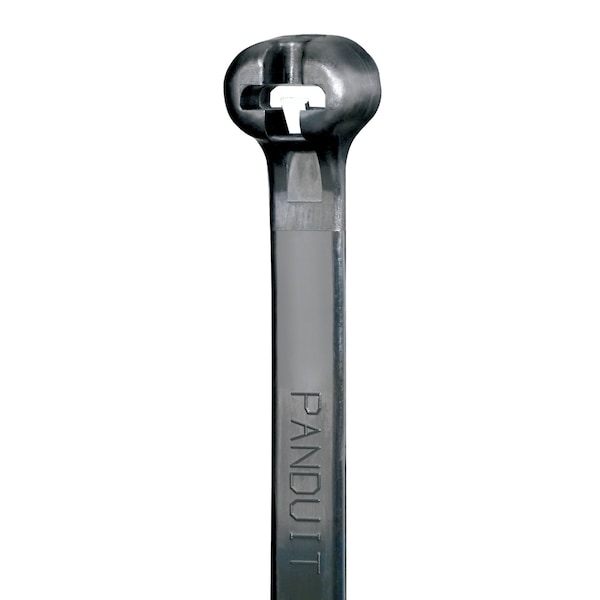

14.9" L Heavy Duty Cable Tie BK PK 250
| Design - Cable Tie | Standard |
|---|---|
| Length | 14.9" |
| Color | Black |
| Width | 0.27 in |
| Color - Cable Tie | Black |
| Item | Cable Tie |
| Tensile Strength | 120 lb |
| Width - Cable Tie | 0.27" |
| Max. Bundle Dia. | 4 in |
| Approximate Length - Cable Tie | 14-1/2 in |
| Material | Nylon 6/6 |
| Temp. Range | -76 to 185 deg F |
| Cable Tie Duty | Heavy Duty |
| Standards | UL 62275 (Type 2, 21), CE, RoHS |
| Tensile Strength - Cable Tie | 120 lb |
| Indoor/Outdoor | Indoor, Outdoor |
| Locking Style | Stainless Steel Barb |
| Basic Material | Nylon |
| Length - Cable Tie | 14.9 in |
| Tool Code | F |
| Design | Standard |
| Metal Detectable | No |
| Basic Material - Cable Tie | Nylon |
| Thickness | 0.06 in |
| Resists | Weather, UV |
| UL Type | 21, 2 |
| Approximate Length | 14-1/2 in |
| Flame Retardant | No |
| Cable Tie Style | Standard |
| Nominal Length | 15 in |
| Min. Temp. Rating | -76 deg F |
| Actual Length | 14.9 in |
| Max. Temp. Rating | 185 deg F |
| Recommended Tool | 52ZJ97, 62PX61, Mfr. No. GS4EH-E, Mfr. No. GS4H-E, Mfr. No. STH2, Mfr. No. STHV |
| Plenum Rated | Yes |
| Nominal Max. Bundle Dia. | 4 in |
| Outdoor Use | Yes |
| Number of Straps | 1 |
| Cable Tie Properties | Halogen-Free, Low-Smoke, Plenum Rated, UV Light Resistant, Weather Resistant |
| For Use With | GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH |
| Products By Industry | Transportation |
| Environmentally Friendly | Yes |
| Minimum Loop Tensile Strength | 120 lb |
| Product Color | Black |
| Cable Manager Type | Tie |
| Product Line | Dome-Top |
| Product Model | BT4LH-TL0 |
| Product Name | Dome-Top BT4LH-TL0 Cable Tie |
| Product Material | Nylon 6.6 |
| Product Type | Cable Tying |
| Body Thickness (mm) | 1.7 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Loop Tensile Strength (lb) | 120 |
| Minimum Installation Temperature (°F) | -4 |
| Overall Length (In.) | 14.9 |
| Minimum Bundle Diameter (mm) | 4.8 |
| Sub Brand | Dome-Top® |
| Environment | Indoor, Outdoor |
| Minimum Bundle Diameter (In.) | 0.188 |
| Body Width (In.) | 0.275 |
| Minimum Installation Temperature (°C) | -20 |
| Maximum Bundle Diameter (In.) | 4 |
| Overall Length (mm) | 378 |
| Maximum Bundle Diameter (mm) | 102 |
| Body Width (mm) | 7 |
| Resistance Properties | UV Resistant |
| Body Thickness (In.) | 0.065 |
| Minimum Operating Temperature (°F) | -76 |
| Standards Met | UL 62275 (File E56854), CSA-C22.2 No. 62275 (File 31212), Cert 05968/C0, BV File ACE 14/601/01 Product Code: 2535H; 89/60111 (E3), 11130200, QPL-AS23190, RoHS Compliant |
| Minimum Loop Tensile Strength (N) | 534 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Installation Temperature (°F) | -4 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -76 |
| Package Quantity | 250 |
