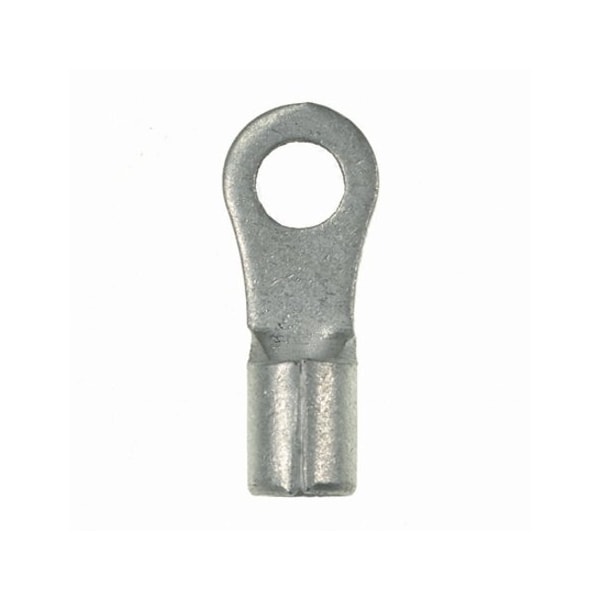

Terminal de anillo sin aislamiento de 16-12 AWG para tornillo de 5/16", paquete de 50 unidades.
| Wire Range | 16 to 12 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | 5/16" |
| Insulation Color | Bare |
| Max. Voltage | 2,000 V |
| Connection Material | Tin-Plated Copper |
| Seam | Brazed |
| Item | Ring Terminal |
| Max. Temp. | 302 deg F |
| Barrel Inside Dia. | 0.12 in |
| Features | Brazed Seam |
| Terminal Type | Ring Tongue |
| Standards | UL Listed 587H E52164, CSA Certified LR31212 |
| Overall Length | 0.96 in |
| Tongue Width - Wire Connector | 0.52 in |
| Finish | Tin-Plated |
| Width | 1/2 in |
| Length | 1 in |
| Product Material | Copper |
| Connector Details | 1 x (Ring Terminal) |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Product Type | Terminal Connector |
| Outside Diameter Inches | 0.52 in |
| Max Operating Temperature | 150 degrees celsius |
| Product Class | Wire Termination |
| Color Coding | Silver |
| Package Quantity | 50 |
