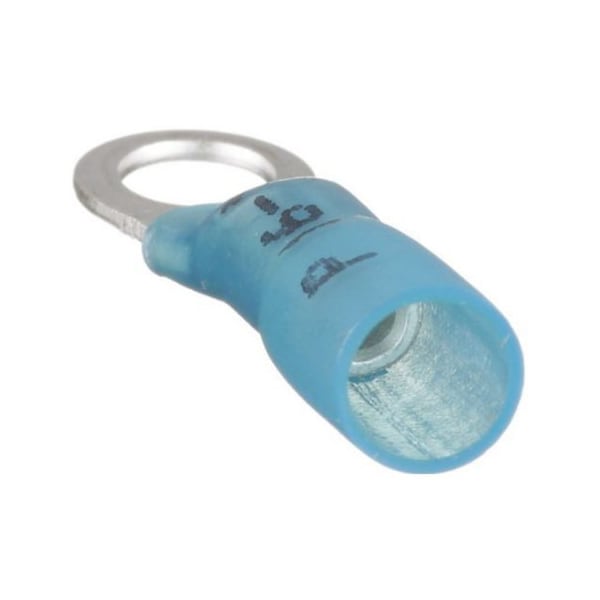

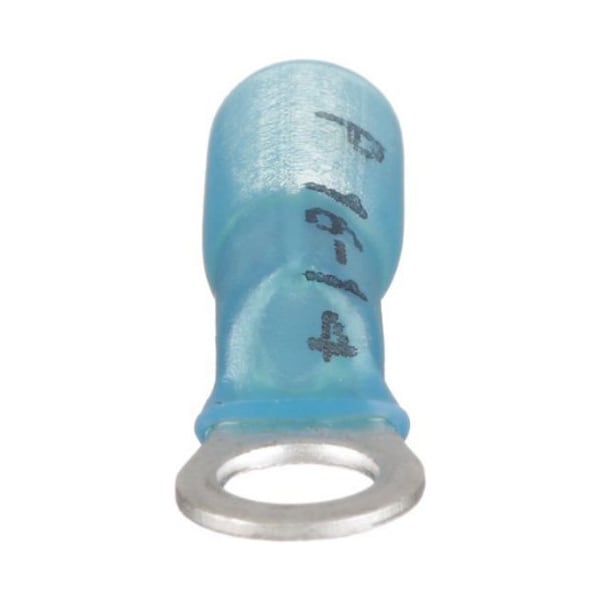

16-14 AWG Heat-Shrink Ring Terminal 1/4" Stud PK25
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Heat Shrink |
| Stud Size | 1/4" |
| Insulation Color | Blue |
| Seam | Brazed |
| Max. Voltage | 600 V |
| Connection Material | Tin-Plated Copper |
| Item | Ring Terminal |
| Terminal Type | Ring Tongue |
| Features | Flame Retardant |
| Standards | cULus Listed 587H E52164, CSA Certified LR31212 |
| Overall Length | 1.24 in |
| Max. Temp. | 257 deg F |
| Tongue Width - Wire Connector | 11.7 mm |
| Width | 0.4 in |
| Finish | Tin-Plated |
| Length | 1.2 in |
| Insulation Dia | 0.19 in |
| Connector Plating | Tin |
| Product Color | Blue |
| Connector Details | 1 x (Ring Terminal) |
| Product Type | Terminal Connector |
| Product Name | Terminal Connector |
| Product Material | Copper |
| Color Coding | Blue |
| Product Class | Wire Termination |
| Barrel Type | Seam |
| Max Operating Temperature | 125 degrees celsius |
| Package Quantity | 25 |
