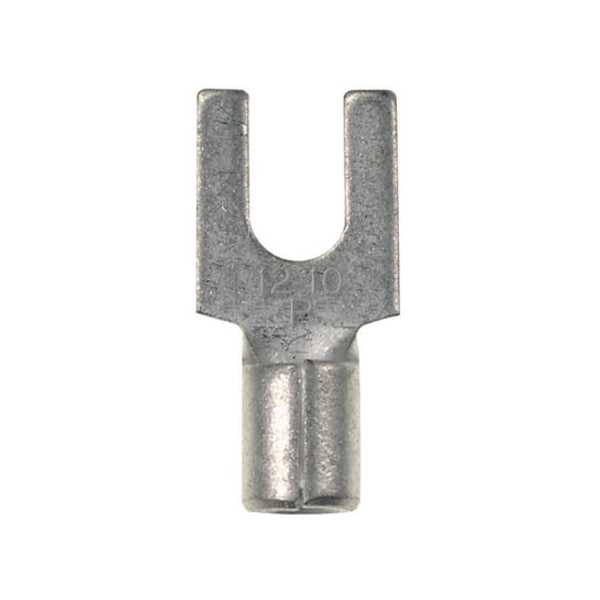

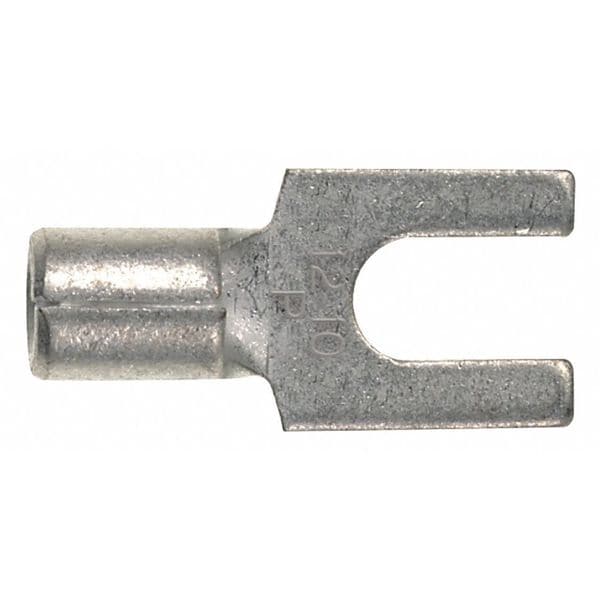

Terminal de horquilla no aislado de calibre 16-14 para perno número 10, paquete de 100.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #10 |
| Insulation Color | Bare |
| Overall Length | 0.71 in |
| Seam | Brazed |
| Standards | CSA Certified, UL 587-H, UL Listed |
| Tongue Width - Wire Connector | 0.34 in |
| Terminal Connection | Crimp |
| Connection Material | Copper |
| Terminal Type | Standard |
| Max. Voltage | 2,000 V |
| Connection Type | Crimp |
| Item | Fork Terminal |
| Features | Barrel of Terminal Internally Beveled to Provide, Fork Design Provides for Fast and Easy Installation, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Without The Need to Remove Fastener |
| Max. Temp. | 302 deg F |
| Barrel Inside Dia. | 0.07 in |
| Material | Copper |
| For Use With | CT-100, CT-1570, CT-2300/ST (CD-570), CT-2500/L (CT-2570CH), UP14ZLW (CD-570) |
| Length | 0.7 in |
| Width | 0.3 in |
| Compatible with Product Type | Crimper, Crimp Tool, Wire Stripper |
| Maximum Operating Temperature | 302 deg F |
| Special Features | Barrel of Terminal Internally Beveled to Provide, Fork Design Provides for Fast and Easy Installation, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength |
| Tongue Thickness | 0.03 in |
| Terminal Shape | Fork |
| Strip Length | 1/4 in |
| Minimum Wire Size | 18 AWG |
| Insulation Material | None |
| Seam Style | Brazed |
| Contact Material | Copper |
| Compatible with Series | CT |
| Barrel Length | 0.28 in |
| Tongue Width | 0.34 in |
| Contact Finish | Tin |
| Termination Style | Crimp |
| Compatible Manufacturer Model Number | CT-100A, CT-1570, CT-160, CT-200, CT-2500 (CT-2570CH), CT-260, CT-600-A (CT-570CH) |
| Maximum Voltage | 2,000 V |
| Tongue Length | 0.00 - 0.50 inches |
| Insulation Coverage | None |
| Maximum Wire Size | 14 AWG |
| Connector Plating | Tin |
| Connector Type | Fork Terminal |
| Product Type | Terminal Connector |
| Environmentally Friendly | Yes |
| Connector Details | 1 x (Fork Terminal) |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Tongue Length (mm) | 11 |
| Tongue Length (In.) | 0.44 |
| Color Code | Metallic |
| Wire Strip Length (mm) | 7.1 |
| Wire Strip Length (In.) | 11,933 |
| Maximum Operating Temperature (°C) | 150 |
| Overall Width (mm) | 8.6 |
| Minimum Copper Conductor Size (AWG SOL) | #18 |
| Stud Hole Size (mm) | 5 |
| Packaging Type | Bottle |
| Maximum Operating Temperature (°F) | 302 |
| Maximum Voltage (kV) | 2 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Outer Diameter (In.) | 0.14 |
| Barrel Type | Standard |
| Maximum Copper Conductor Size (AWG) | #14 |
| Overall Length (In.) | 0.71 |
| Fork Type | Standard |
| Base Material | Copper |
| Outer Diameter (mm) | 3.6 |
| Inside Diameter (mm) | 1.8 |
| Minimum Wire Size (AWG) | #18 |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Seam Type | Brazed |
| Inside Diameter (In.) | 0.07 |
| Maximum Wire Size (AWG) | #14 |
| Overall Length (mm) | 18 |
| Tongue Thickness (mm) | 0.8 |
| Minimum Copper Conductor Size (AWG STR) | #18 |
| Tongue Width (In.) | 0.34 |
| Finish/Coating | Tin-Plated |
| Minimum Copper Conductor Size (AWG) | #18 |
| Barrel Length (In.) | 0.28 |
| Overall Width (In.) | 0.34 |
| Stud Hole Size (In.) | #10 |
| Tongue Thickness (In.) | 0.03 |
| Tongue Width (mm) | 8.6 |
| Sub Brand | Pan-Term® |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Barrel Length (mm) | 7 |
| Maximum Voltage (V) | 2,000 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Package Quantity | 100 |
