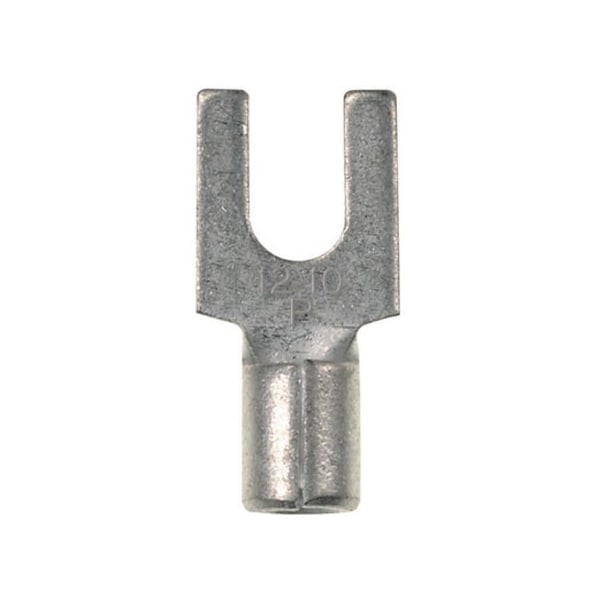

16-14 AWG Non-Insulated Fork Terminal #5 Stud PK100
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #5 |
| Insulation Color | Bare |
| Connection Material | Tin-Plated Copper |
| Seam | Brazed |
| Item | Fork Terminal |
| Max. Voltage | 2,000 V |
| Barrel Inside Dia. | 0.09 in |
| Features | Brazed Seam |
| Overall Length | 0.63 in |
| Terminal Type | Standard |
| Max. Temp. | 302 deg F |
| Tongue Width - Wire Connector | 0.23 in |
| Width | 0.2 in |
| Finish | Tin-Plated |
| Length | 0.6 in |
| Connector Plating | Tin |
| Product Type | Terminal Connector |
| Diameter | 0.1" |
| Connector Details | 1 x (Fork Terminal) |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Product Color | Metallic |
| Product Class | Fork Terminals |
| Barrel Type | Beveled |
| Max Operating Temperature | 150 degrees celsius |
| Package Quantity | 100 |
