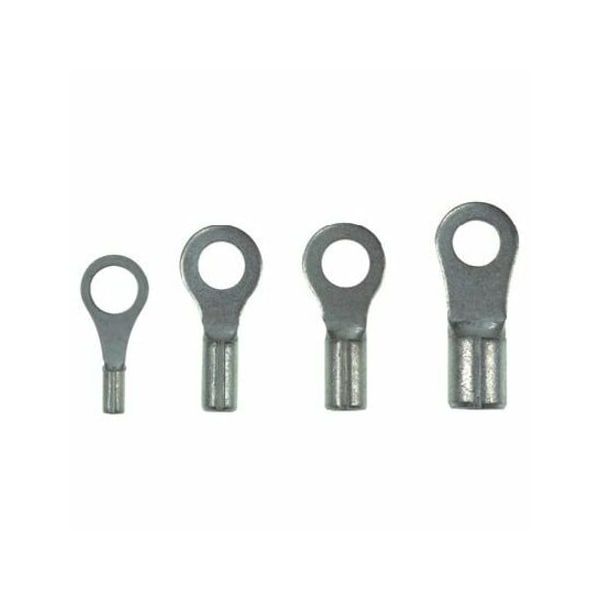

Terminal de anillo sin aislamiento de calibre 16-14, con perno #10, paquete de 100 unidades.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #10 |
| Insulation Color | Bare |
| Item | Ring Terminal |
| Max. Voltage | 2,000 V |
| Connection Material | Tin-Plated Copper |
| Seam | Brazed |
| Features | Brazed Seam |
| Terminal Type | Ring Tongue |
| Max. Temp. | 302 deg F |
| Overall Length | 0.7 in |
| Tongue Width - Wire Connector | 0.35 in |
| Finish | Tin-Plated |
| Width | 0.4 in |
| Length | 0.7 in |
| Connector Plating | Tin |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Connector Details | 1 x (Ring Terminal) |
| Product Type | Terminal Connector |
| Product Color | Metallic |
| Max Operating Temperature | 150 degrees celsius |
| Product Class | Wire Termination |
| Barrel Type | Funnel Entry |
| Package Quantity | 100 |
