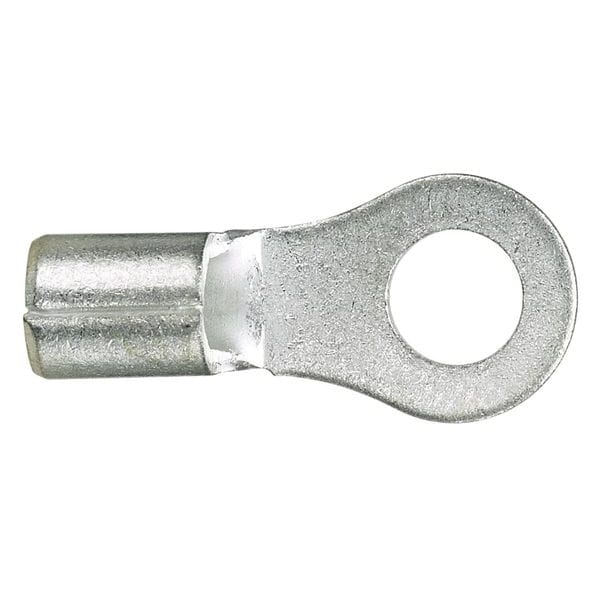

Terminal de anillo sin aislamiento de calibre 16-14, con perno de 5/16", paquete de 100 unidades.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | 5/16 in |
| Insulation Color | Bare |
| Green Environmental Attribute | Does Not Contain PVC |
| Max. Voltage | 2,000 V |
| Standards | CSA C22.2 No. 65, UL 486A, UL 486B |
| Connection Material | Copper |
| Seam | Brazed |
| Connection Type | Crimp |
| Terminal Connection | Crimp |
| Overall Length | 0.91 in |
| Tongue Width - Wire Connector | 0.46 in |
| Item | Ring Terminal |
| Max. Temp. | 302 deg F |
| Features | Brazed Seam |
| Barrel Inside Dia. | 0.09 in |
| Terminal Type | Ring Tongue |
| Length | 0.9 in |
| For Use With | CT-100, CT-1570, CT-2300/ST (CD-570), CT-2500/L (CT-2570CH), UP14ZLW (CD-570) |
| Width | 1/2 in |
| Compatible Manufacturer Model Number | CT-100, CT-100A, CT-1570, CT-160, CT-200, CT-2500, CT-260, CT-570, CT-600-A |
| Maximum Operating Temperature | 302 deg F |
| Maximum Wire Size | 14 AWG |
| Termination Style | Crimp |
| Contact Finish | Tin |
| Maximum Voltage | 2,000 V |
| Minimum Wire Size | 18 AWG |
| Tongue Width | 0.46 in |
| Terminal Shape | Ring Terminal |
| Contact Material | Copper |
| Seam Style | Brazed |
| Special Features | Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| Hole Diameter | 0.34 in |
| Minimum Operating Temperature | 302 deg F |
| Insulation Coverage | None |
| Barrel Inside Diameter | 0.09 in |
| Strip Length | 1/4 in |
| Barrel Style | Serrated Barrel |
| Insulation Material | None |
| Tongue Thickness | 0.03 in |
| Barrel Length | 0.34 in |
| Barrel Outside Diameter | 0.09 in |
| Connector Type | Ring Terminal |
| Product Type | Terminal Connector |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Product Material | Copper |
| Environmentally Friendly | Yes |
| Connector Details | 1 x (Ring Terminal) |
| Overall Length (In.) | 0.91 |
| Maximum Operating Temperature (°F) | 302 |
| Tongue Thickness (mm) | 0.8 |
| Base Material | Copper |
| Maximum Wire Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Tongue Width (mm) | 11.7 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Seam Type | Brazed |
| Stud Hole Size (mm) | 8 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Outer Diameter (In.) | 0.16 |
| Barrel Type | Standard |
| Minimum Wire Size (AWG) | #18 |
| Stud Hole Size (In.) | 5/16" |
| Tongue Width (In.) | 0.46 |
| Wire Strip Length (mm) | 7.1 |
| Finish/Coating | Tin-Plated |
| Tongue Thickness (In.) | 0.03 |
| Packaging Type | Bottle |
| Inside Diameter (In.) | 0.09 |
| Overall Width (mm) | 11.7 |
| Outer Diameter (mm) | 4.06 |
| Maximum Voltage (V) | 2,000 |
| Sub Brand | Pan-Term® |
| Inside Diameter (mm) | 2.3 |
| Maximum Operating Temperature (°C) | 150 |
| Wire Strip Length (In.) | 11,933 |
| Overall Length (mm) | 23.1 |
| Overall Width (In.) | 0.46 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Maximum Operating Temperature (°F) | 302 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Maximum Operating Temperature (°C) | 150 |
| Package Quantity | 100 |
