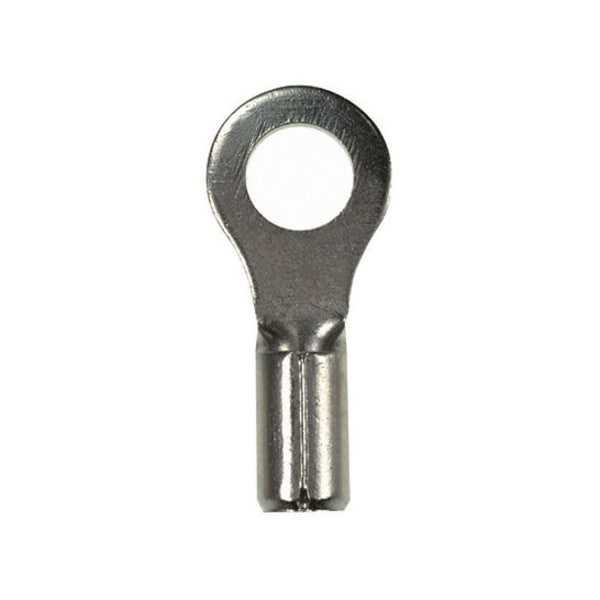

Terminal anular sin aislamiento de 16-14 AWG para tornillo del #6, paquete de 100 unidades.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #6 |
| Insulation Color | Bare |
| Item | Ring Terminal |
| Max. Voltage | 2,000 V |
| Seam | Brazed |
| Connection Material | Nickel-Plated Copper |
| Standards | cULus Listed 587H E52164 |
| Overall Length | 0.62 in |
| Terminal Type | Ring Tongue |
| Features | Brazed Seam |
| Max. Temp. | 650 deg F |
| Barrel Inside Dia. | 0.09 in |
| Tongue Width - Wire Connector | 1/4 in |
| Width | 0.3 in |
| Finish | Tin-Plated |
| Length | 0.6 in |
| Connector Plating | Nickel |
| Connector Details | 1 x (Ring Terminal) |
| Product Type | Terminal Connector |
| Product Name | Terminal Connector |
| Product Material | Copper |
| Max Operating Temperature | 343 degrees celsius |
| Outside Diameter Inches | 1/4 in |
| Product Class | Wire Termination |
| Color Coding | Silver |
| Package Quantity | 100 |
