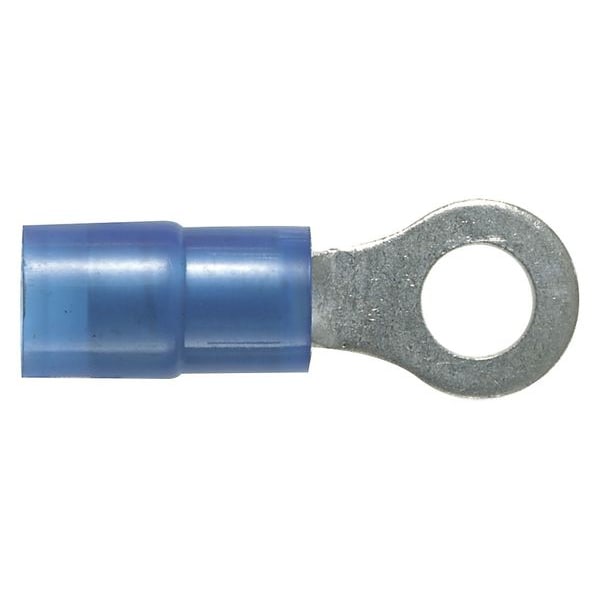

Terminal de anillo de nylon calibre 16-14 con perno de 3/8" paquete de 50 unidades.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | 3/8 in |
| Insulation Color | Blue |
| Green Environmental Attribute | Does Not Contain PVC |
| Item | Ring Terminal |
| Max. Temp. | 221 deg F |
| Max. Voltage | 600 V |
| Connection Material | Copper |
| Connection Type | Crimp |
| Standards | CSA C22.2 No. 65, UL 486A, UL 486B |
| Tongue Width - Wire Connector | 0.53 in |
| Seam | Grip Sleeved |
| Overall Length | 1.14 in |
| Terminal Connection | Crimp |
| Terminal Type | Ring Tongue |
| Features | Flame Retardant |
| Width | 1/2 in |
| Length | 1.1 in |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Maximum Operating Temperature | 221 deg F |
| UL 94 Flammability Rating | HB, V-2 |
| Minimum Wire Size | 18 AWG |
| Compatible Manufacturer Model Number | CT-1550, CT-1551, CT-400, CT-460, CT-550 |
| Maximum Wire Size | 14 AWG |
| Strip Length | 1/4 in |
| Special Features | Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications, Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| Insulation Material | Nylon |
| Hole Diameter | 0.4 in |
| Termination Style | Crimp |
| Tongue Length | 0.57 in |
| Insulation Coverage | Partial Coverage |
| Barrel Length | 0.57 in |
| Seam Style | Grip Sleeved |
| Tongue Width | 0.53 in |
| Minimum Operating Temperature | 221 deg F |
| Maximum Voltage | 600 V |
| Barrel Inside Diameter | 0.16 in |
| Contact Finish | Tin |
| Contact Material | Copper |
| Terminal Shape | Ring Terminal |
| Barrel Style | Insulation Grip |
| Insulation Dia | 0.16 in |
| Product Type | Terminal Connector |
| Product Material | Copper |
| Connector Plating | Tin |
| Connector Type | Ring Terminal |
| Product Color | Blue |
| Environmentally Friendly | Yes |
| Product Name | Terminal Connector |
| Connector Details | 1 x (Ring Terminal) |
| Base Material | Copper |
| Overall Width (mm) | 13.5 |
| Overall Length (In.) | 1.14 |
| Stud Hole Size (mm) | 10 |
| Wire Strip Length (In.) | 11,871 |
| Wire Strip Length (mm) | 5.6 |
| Minimum Wire Insulation Diameter (mm) | 2 |
| Finish/Coating | Tin-Plated |
| Tongue Width (mm) | 13.5 |
| Maximum Wire Insulation Diameter (mm) | 4.1 |
| Maximum Voltage (kV) | 0.6 |
| Barrel Length (In.) | 0.57 |
| Insulation Diameter (In.) | 0.16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Stud Hole Size (In.) | 3/8" |
| Tongue Length (In.) | 0.57 |
| Sub Brand | Pan-Term® |
| Maximum Voltage (V) | 600 |
| Barrel Type | Grip Sleeve |
| Overall Length (mm) | 29 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-110) |
| Maximum Operating Temperature (°F) | 221 |
| Packaging Type | Bottle |
| Tongue Width (In.) | 0.53 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Tongue Length (mm) | 14.5 |
| Maximum Wire Insulation Diameter (In.) | 0.16 |
| Minimum Wire Insulation Diameter (In.) | 0.08 |
| Maximum Wire Size (AWG) | #14 |
| Insulation Diameter (mm) | 4.1 |
| CSA Temperature Rating (°C) | 105 |
| Maximum Operating Temperature (°C) | 105 |
| Flammability Rating | UL94V-2/UL94-HB |
| Color Code | Blue |
| Minimum Wire Size (AWG) | #18 |
| Overall Width (In.) | 0.53 |
| Barrel Length (mm) | 14.5 |
| Package Quantity | 50 |
