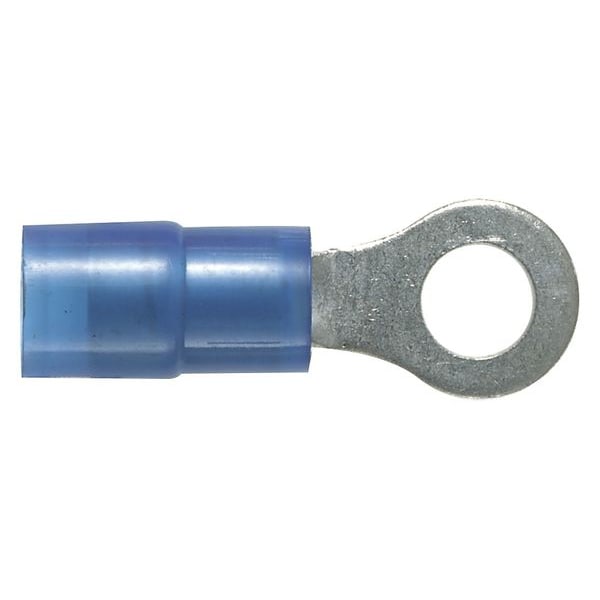

16-14 AWG Nylon Ring Terminal 5/16" Stud PK100
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | 5/16 in |
| Insulation Color | Blue |
| Tongue Width - Wire Connector | 0.43 in |
| Standards | CSA C22.2 No. 65, UL 486A, UL 486B |
| Max. Temp. | 221 deg F |
| Connection Material | Copper |
| Overall Length | 1.05 in |
| Max. Voltage | 600 V |
| Green Environmental Attribute | Does Not Contain PVC |
| Connection Type | Crimp |
| Seam | Grip Sleeved |
| Item | Ring Terminal |
| Terminal Connection | Crimp |
| Features | Flame Retardant |
| Terminal Type | Ring Tongue |
| Width | 1/2 in |
| Length | 1.1 in |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Special Features | Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications, Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| Barrel Style | Insulation Grip |
| Maximum Wire Size | 14 AWG |
| Seam Style | Grip Sleeved |
| Contact Finish | Tin |
| Barrel Inside Diameter | 0.16 in |
| Maximum Voltage | 600 V |
| Terminal Shape | Ring Terminal |
| Tongue Width | 0.43 in |
| Contact Material | Copper |
| Barrel Length | 0.53 in |
| Compatible Manufacturer Model Number | CT-100, CT-1550, CT-1551, CT-2300/ST, CT-2500/L, UP14ZLW |
| Hole Diameter | 0.34 in |
| Minimum Operating Temperature | 221 deg F |
| Maximum Operating Temperature | 221 deg F |
| Termination Style | Crimp |
| Minimum Wire Size | 18 AWG |
| Strip Length | 1/4 in |
| Tongue Length | 0.52 in |
| UL 94 Flammability Rating | HB, V-2 |
| Insulation Material | Nylon |
| Insulation Coverage | Partial Coverage |
| Insulation Dia | 0.16 in |
| Connector Details | 1 x (Ring Terminal) |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Environmentally Friendly | Yes |
| Product Color | Blue |
| Product Type | Terminal Connector |
| Product Material | Copper |
| Connector Type | Ring Terminal |
| Barrel Type | Grip Sleeve |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Wire Size (AWG) | #14 |
| Overall Width (mm) | 11.7 |
| Stud Hole Size (mm) | 8 |
| Color Code | Blue |
| Wire Strip Length (mm) | 5.6 |
| Overall Length (mm) | 26.7 |
| Flammability Rating | UL94V-2/UL94-HB |
| Maximum Operating Temperature (°F) | 221 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-109) |
| Tongue Length (In.) | 0.52 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Insulation Diameter (mm) | 4.1 |
| Base Material | Copper |
| Minimum Wire Size (AWG) | #18 |
| Finish/Coating | Tin-Plated |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| CSA Temperature Rating (°C) | 105 |
| Maximum Voltage (V) | 600 |
| Insulation Diameter (mm) | 4.1 |
| Tongue Width (mm) | 11.7 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Insulation Diameter (In.) | 0.16 |
| Packaging Type | Bottle |
| Wire Strip Length (In.) | 11,871 |
| Tongue Length (mm) | 13.2 |
| Barrel Length (In.) | 0.52 |
| Barrel Length (mm) | 13.2 |
| Stud Hole Size (In.) | 5/16" |
| Minimum Wire Insulation Diameter (In.) | 0.08 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Tongue Width (In.) | 0.46 |
| Maximum Wire Insulation Diameter (In.) | 0.16 |
| Overall Length (In.) | 1.05 |
| Minimum Wire Insulation Diameter (mm) | 2 |
| Maximum Voltage (kV) | 0.6 |
| Overall Width (In.) | 0.46 |
| Sub Brand | Pan-Term® |
| CSA Temperature Rating (°C) | 105 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Package Quantity | 100 |
