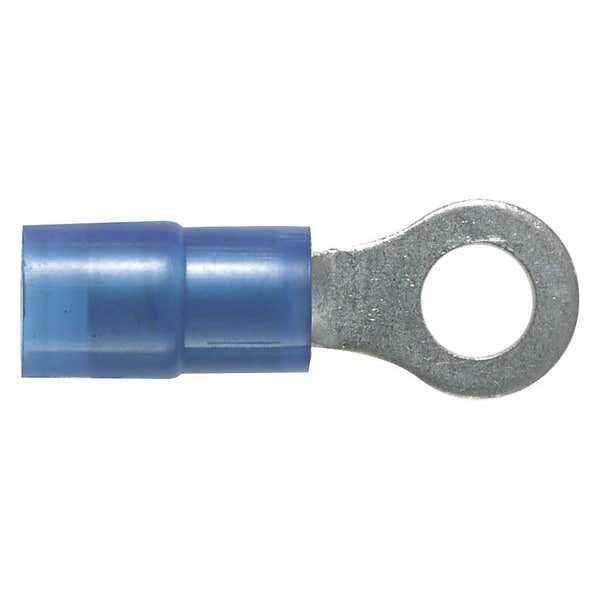

16-14 AWG Nylon Ring Terminal #6 Stud PK100
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #6 |
| Insulation Color | Blue |
| Seam | Grip Sleeved |
| Connection Material | Copper |
| Max. Voltage | 600 V |
| Standards | CSA C22.2 No. 65, UL 486A, UL 486B |
| Tongue Width - Wire Connector | 0.31 in |
| Connection Type | Crimp |
| Terminal Connection | Crimp |
| Item | Ring Terminal |
| Green Environmental Attribute | Does Not Contain PVC |
| Max. Temp. | 221 deg F |
| Overall Length | 0.85 in |
| Terminal Type | Ring Tongue |
| Features | Flame Retardant |
| Width | 0.3 in |
| Length | 0.9 in |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Termination Style | Crimp |
| Compatible Manufacturer Model Number | CT-100, CT-1550, CT-1551, CT-2300/ST, CT-2500/L, UP14ZLW |
| Tongue Width | 0.31 in |
| Hole Diameter | 0.15 in |
| Tongue Thickness | 0.03 in |
| Insulation Material | Nylon |
| Barrel Inside Diameter | 0.16 in |
| Seam Style | Grip Sleeved |
| Insulation Coverage | Partial Coverage |
| Special Features | Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications, Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| Maximum Operating Temperature | 221 deg F |
| Contact Finish | Tin |
| Minimum Operating Temperature | 221 deg F |
| UL 94 Flammability Rating | HB |
| Contact Material | Copper |
| Barrel Style | Insulation Grip |
| Terminal Shape | Ring Terminal |
| Maximum Wire Size | 14 AWG |
| Minimum Wire Size | 18 AWG |
| Maximum Voltage | 600 V |
| Strip Length | 1/4 in |
| Insulation Dia | 0.16 in |
| Connector Plating | Tin |
| Product Type | Terminal Connector |
| Environmentally Friendly | Yes |
| Connector Details | 1 x (Ring Terminal) |
| Connector Type | Ring Terminal |
| Product Name | Terminal Connector |
| Product Material | Copper |
| Product Color | Blue |
| Overall Width (In.) | 0.31 |
| Maximum Voltage (V) | 600 |
| Base Material | Copper |
| Tongue Width (In.) | 0.31 |
| Wire Strip Length (mm) | 5.6 |
| Minimum Wire Size (AWG) | #18 |
| Flammability Rating | UL94-HB |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-107) |
| Overall Width (mm) | 7.9 |
| Maximum Voltage (kV) | 0.6 |
| Stud Hole Size (In.) | #6 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Stud Hole Size (mm) | 3.5 |
| Sub Brand | Pan-Term® |
| Barrel Type | Grip Sleeve |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Tongue Width (mm) | 7.9 |
| Color Code | Blue |
| Maximum Wire Insulation Diameter (mm) | 4.1 |
| Tongue Thickness (In.) | 0.03 |
| Overall Length (In.) | 0.85 |
| Finish/Coating | Tin-Plated |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Maximum Operating Temperature (°C) | 105 |
| Packaging Type | Bottle |
| Wire Strip Length (In.) | 11,871 |
| Tongue Thickness (mm) | 0.8 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Insulation Diameter (In.) | 0.16 |
| Overall Length (mm) | 21.6 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Package Quantity | 100 |
