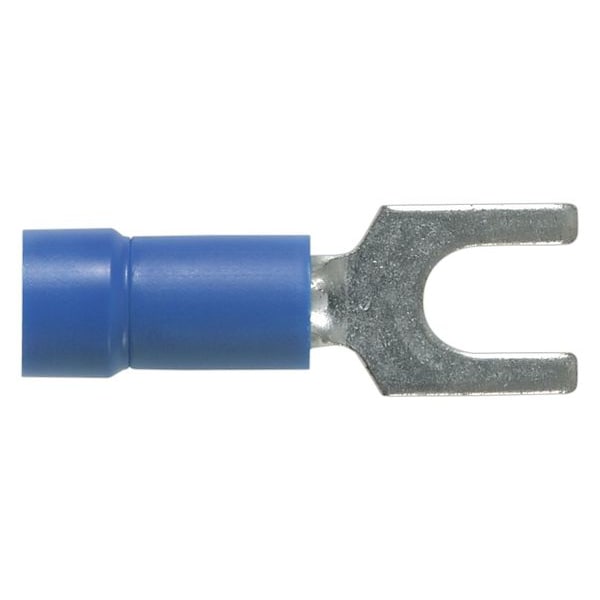

Terminal de horquilla de vinilo de calibre 16-14 con orificio para tornillo #10, paquete de 100 unidades.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #10 |
| Insulation Color | Blue |
| Features | Brazed Seam Protects Terminal Barrel From Splitting During Crimping Process, Fork Design Provides for Fast and Easy Installation, Insulation Support, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength |
| Connection Type | Crimp |
| Seam | Brazed |
| Overall Length | 0.92 in |
| Tongue Width - Wire Connector | 0.34 in |
| Max. Temp. | 221 deg F |
| Item | Fork Terminal |
| Max. Voltage | 600 V |
| Terminal Type | Standard |
| Terminal Connection | Crimp |
| Standards | American Bureau of Shipping (ABS), CSA22.2 No. 65, UL 486A - 486B |
| Connection Material | Copper |
| Material | Copper, Vinyl |
| Length | 0.9 in |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Width | 0.3 in |
| Tongue Width | 0.34 in |
| Maximum Voltage | 600 V |
| Insulation Dia | 0.17 in |
| Connector Details | 1 x (Fork Terminal) |
| Insulation Material | Vinyl |
| Product Color | Blue |
| Diameter | 0.2" |
| Environmentally Friendly | Yes |
| Product Material | Vinyl |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Product Type | Terminal Connector |
| Connector Type | Fork Terminal |
| Tongue Length (In.) | 0.46 |
| Stud Hole Size (In.) | #10 |
| Color Code | Blue |
| Fork Type | Standard |
| Sub Brand | Pan-Term® |
| Overall Width (In.) | 0.34 |
| Tongue Thickness (In.) | 0.03 |
| Base Material | Copper |
| Wire Strip Length (In.) | 45,062 |
| Tongue Thickness (mm) | 1 |
| Tongue Width (mm) | 0.8 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Tongue Width (In.) | 0.3 |
| Maximum Voltage (V) | 600 |
| Overall Length (mm) | 23.4 |
| Barrel Length (mm) | 11.7 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Voltage (kV) | 0.6 |
| Overall Width (mm) | 8.64 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Barrel Length (In.) | 0.46 |
| Barrel Type | Funnel |
| Flammability Rating | UL94V-0 |
| Maximum Wire Insulation Diameter (mm) | 4.32 |
| Stud Hole Size (mm) | 5 |
| Seam Type | Brazed |
| Finish/Coating | Tin-Plated |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Packaging Type | Bottle |
| Minimum Copper Conductor Size (AWG) | #16 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Overall Length (In.) | 0.92 |
| Maximum Wire Size (AWG) | #14 |
| Tongue Length (mm) | 11.7 |
| Minimum Wire Size (AWG) | #16 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Wire Insulation Diameter (In.) | 0.17 |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Special Features | Brazed Seam Protects Terminal Barrel From Splitting During Crimping Process, Fork Design Provides for Fast and Easy Installation, Insulation Support, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength |
| Minimum Wire Size | 16 AWG |
| Maximum Wire Size | 14 AWG |
| Seam Style | Brazed |
| Maximum Operating Temperature (°C) | 105 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Maximum Operating Temperature (°F) | 221 |
| Package Quantity | 100 |
