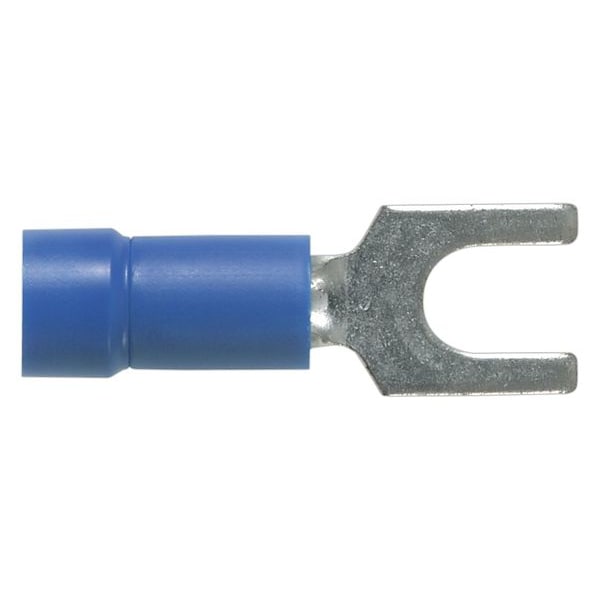

Terminal de horquilla de vinilo de calibre 16-14 con estudio #10, paquete de 1000 unidades.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #10 |
| Insulation Color | Blue |
| Terminal Type | Standard |
| Overall Length | 0.92 in |
| Tongue Width - Wire Connector | 0.34 in |
| Max. Temp. | 221 deg F |
| Features | Brazed Seam Protects Terminal Barrel From Splitting During Crimping Process, Fork Design Provides for Fast and Easy Installation, Insulation Support, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength |
| Seam | Brazed |
| Terminal Connection | Crimp |
| Item | Fork Terminal |
| Connection Material | Copper |
| Connection Type | Crimp |
| Max. Voltage | 600 V |
| Standards | American Bureau of Shipping (ABS), CSA22.2 No. 65, UL 486A - 486B |
| Maximum Voltage | 600 V |
| Tongue Width | 0.34 in |
| Special Features | Brazed Seam Protects Terminal Barrel From Splitting During Crimping Process, Fork Design Provides for Fast and Easy Installation, Insulation Support, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength |
| Maximum Wire Size | 14 AWG |
| Minimum Wire Size | 16 AWG |
| Seam Style | Brazed |
| Package Quantity | 1000 |
