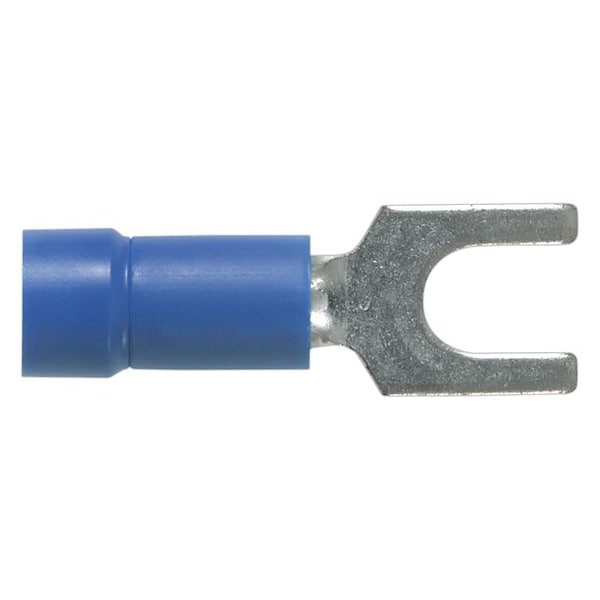

Terminal de horquilla de vinil calibre 16-14, para tornillo #6, paquete de 100.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #6 |
| Insulation Color | Blue |
| Max. Temp. | 221 deg F |
| Overall Length | 0.84 in |
| Connection Type | Crimp |
| Seam | Brazed |
| Terminal Connection | Crimp |
| Tongue Width - Wire Connector | 0.28 in |
| Max. Voltage | 600 V |
| Item | Fork Terminal |
| Standards | American Bureau of Shipping (ABS), CSA22.2 No. 65, UL 486A - 486B |
| Connection Material | Copper |
| Features | Brazed Seam Protects Terminal Barrel From Splitting During Crimping Process, Fork Design Provides for Fast and Easy Installation, Insulation Support, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength |
| Terminal Type | Standard |
| Material | Copper, Vinyl |
| Width | 0.3 in |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Length | 0.8 in |
| Tongue Width | 0.28 in |
| Maximum Voltage | 600 V |
| Insulation Dia | 0.17 in |
| Product Type | Terminal Connector |
| Diameter | 0.2" |
| Product Name | Terminal Connector |
| Environmentally Friendly | Yes |
| Product Color | Blue |
| Connector Details | 1 x (Fork Terminal) |
| Connector Plating | Tin |
| Connector Type | Fork Terminal |
| Insulation Material | Vinyl |
| Product Material | Vinyl |
| Seam Type | Brazed |
| Barrel Type | Funnel |
| Base Material | Copper |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Wire Strip Length (In.) | 45,062 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Tongue Width (In.) | 0.28 |
| Finish/Coating | Tin-Plated |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Flammability Rating | UL94V-0 |
| Overall Width (In.) | 0.28 |
| Stud Hole Size (In.) | #6 |
| Overall Width (mm) | 7.11 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Maximum Voltage (kV) | 0.6 |
| Tongue Length (mm) | 10.7 |
| Stud Hole Size (mm) | 3.5 |
| Tongue Thickness (In.) | 0.03 |
| Barrel Length (In.) | 0.42 |
| Color Code | Blue |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Overall Length (mm) | 21.3 |
| Tongue Length (In.) | 0.42 |
| Minimum Wire Size (AWG) | #16 |
| Sub Brand | Pan-Term® |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Wire Size (AWG) | #14 |
| Maximum Wire Insulation Diameter (mm) | 4.32 |
| Barrel Length (mm) | 10.7 |
| Packaging Type | Bottle |
| Wire Strip Length (mm) | 7.9 |
| Overall Length (In.) | 0.84 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Tongue Thickness (mm) | 0.8 |
| Fork Type | Standard |
| Maximum Wire Insulation Diameter (In.) | 0.17 |
| Tongue Width (mm) | 7.1 |
| Maximum Voltage (V) | 600 |
| Maximum Wire Size | 14 AWG |
| Special Features | Brazed Seam Protects Terminal Barrel From Splitting During Crimping Process, Fork Design Provides for Fast and Easy Installation, Insulation Support, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength |
| Minimum Wire Size | 16 AWG |
| Seam Style | Brazed |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Maximum Operating Temperature (°F) | 221 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Maximum Operating Temperature (°C) | 105 |
| Package Quantity | 100 |
