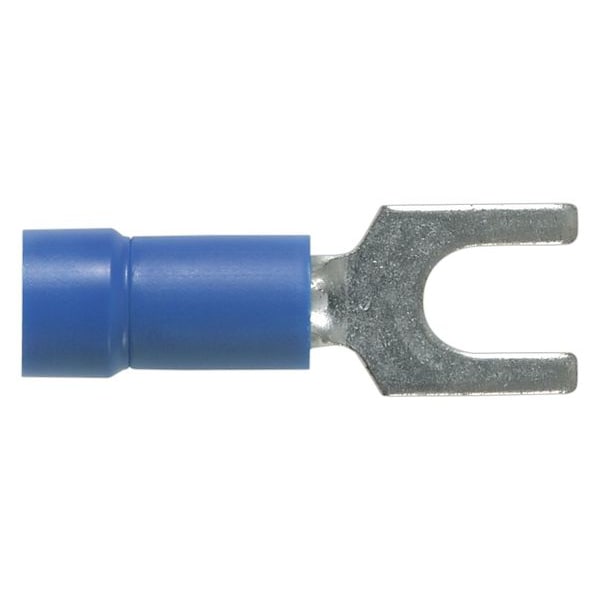

Terminal en horquilla de vinilo de calibre 16-14 para tornillo de medida #8, paquete con 100 piezas.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #8 |
| Insulation Color | Blue |
| Features | Brazed Seam Protects Terminal Barrel From Splitting During Crimping Process, Fork Design Provides for Fast and Easy Installation, Insulation Support, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength |
| Terminal Type | Standard |
| Connection Type | Crimp |
| Standards | American Bureau of Shipping (ABS), CSA22.2 No. 65, UL 486A - 486B |
| Max. Temp. | 221 deg F |
| Overall Length | 0.9 in |
| Tongue Width - Wire Connector | 0.31 in |
| Terminal Connection | Crimp |
| Connection Material | Copper |
| Max. Voltage | 600 V |
| Seam | Brazed |
| Item | Fork Terminal |
| Width | 0.3 in |
| Length | 0.9 in |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Tongue Width | 0.31 in |
| Maximum Voltage | 600 V |
| Insulation Dia | 0.17 in |
| Connector Type | Fork Terminal |
| Product Type | Terminal Connector |
| Connector Details | 1 x (Fork Terminal) |
| Product Material | Copper |
| Connector Plating | Tin |
| Insulation Material | Vinyl |
| Environmentally Friendly | Yes |
| Product Name | Terminal Connector |
| Barrel Length (In.) | 0.45 |
| Overall Length (In.) | 0.9 |
| Stud Hole Size (mm) | 4 |
| Barrel Length (mm) | 11.4 |
| Tongue Thickness (In.) | 0.03 |
| Sub Brand | Pan-Term® |
| Barrel Type | Funnel |
| Finish/Coating | Tin-Plated |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Maximum Voltage (kV) | 0.6 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Tongue Length (In.) | 0.45 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Base Material | Copper |
| Tongue Width (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Stud Hole Size (In.) | #8 |
| Fork Type | Standard |
| Minimum Wire Size (AWG) | #16 |
| Overall Width (mm) | 7.87 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Seam Type | Brazed |
| Overall Length (mm) | 22.9 |
| Tongue Width (In.) | 0.31 |
| Tongue Length (mm) | 22.9 |
| Overall Width (In.) | 0.31 |
| Wire Strip Length (In.) | 45,062 |
| Color Code | Blue |
| Packaging Type | Bottle |
| Maximum Wire Insulation Diameter (mm) | 4.32 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Maximum Voltage (V) | 600 |
| Tongue Thickness (mm) | 0.8 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.17 |
| Wire Strip Length (mm) | 7.9 |
| Maximum Wire Size (AWG) | #14 |
| Flammability Rating | UL94V-0 |
| Minimum Wire Size | 16 AWG |
| Special Features | Brazed Seam Protects Terminal Barrel From Splitting During Crimping Process, Fork Design Provides for Fast and Easy Installation, Insulation Support, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength |
| Maximum Wire Size | 14 AWG |
| Seam Style | Brazed |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Operating Temperature (°C) | 105 |
| Package Quantity | 100 |
