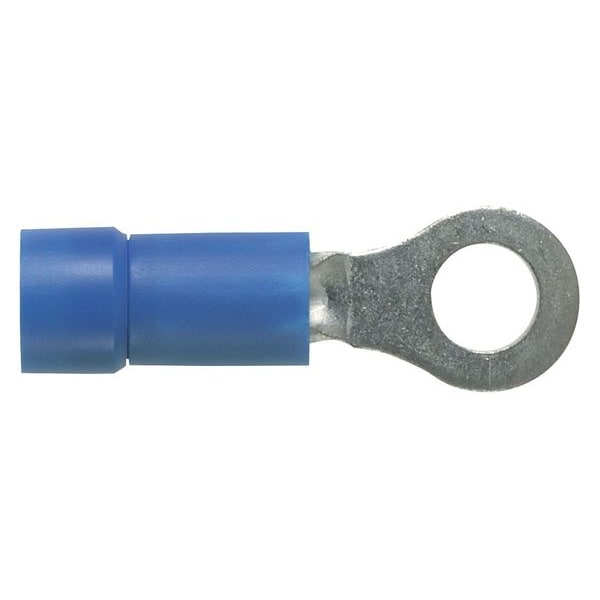

Terminal de anilla de vinilo de 16-14 AWG para tornillo #10, paquete de 1000 unidades.
| Wire Range | 16 AWG to 14 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #10 |
| Insulation Color | Blue |
| Tongue Width - Wire Connector | 0.31 in |
| Max. Voltage | 600 V |
| Overall Length | 0.92 in |
| Connection Material | Copper |
| Seam | Brazed |
| Standards | CSA C22.2 No. 65, UL486A-486B |
| Max. Temp. | 221 deg F |
| Item | Ring Terminal |
| Maximum Voltage | 600 V |
| Seam Style | Brazed |
| Tongue Width | 0.31 in |
| Maximum Wire Size | 14 AWG |
| Minimum Wire Size | 16 AWG |
| Contact Material | Copper |
| Package Quantity | 1000 |
