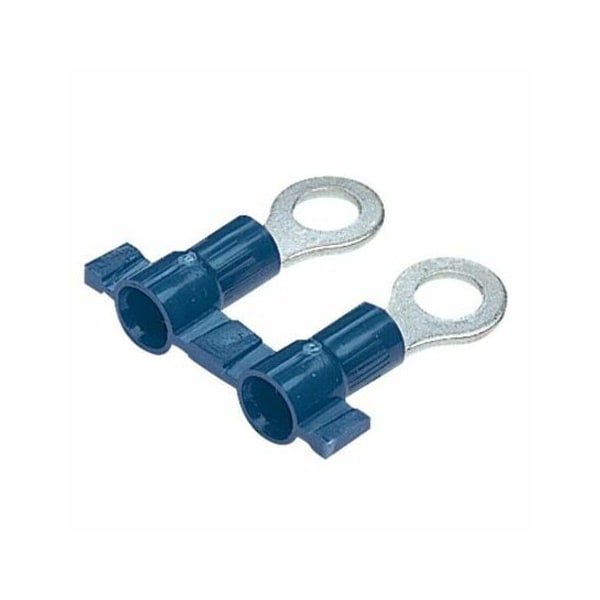

Terminal de anillo de vinilo de calibre 16-14 con espárrago de 1/4 de pulgada, paquete de 3000.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | 1/4" |
| Insulation Color | Blue |
| Item | Ring Terminal |
| Max. Voltage | 600 V |
| Connection Material | Tin-Plated Copper |
| Seam | Funnel |
| Terminal Type | Ring Tongue |
| Max. Temp. | 221 deg F |
| Overall Length | 1.05 in |
| Standards | cULus Listed 587H E52164, CSA Certified LR31212 |
| Features | Flame Retardant, Molded |
| Length | 1.1 in |
| Finish | Tin-Plated |
| Width | 0.4 in |
| Tongue Width - Wire Connector | 0.45 in |
| Insulation Dia | 0.17 in |
| Product Name | Terminal Connector |
| Product Color | Blue |
| Connector Plating | Tin |
| Product Type | Terminal Connector |
| Connector Details | 1 x (Ring Terminal) |
| Insulation Material | Vinyl, Copper |
| Color Coding | Blue |
| Product Class | Ring Terminals |
| Max Operating Temperature | 105 degrees celsius |
| Barrel Type | Funnel Entry |
| Package Quantity | 3000 |
